Product description

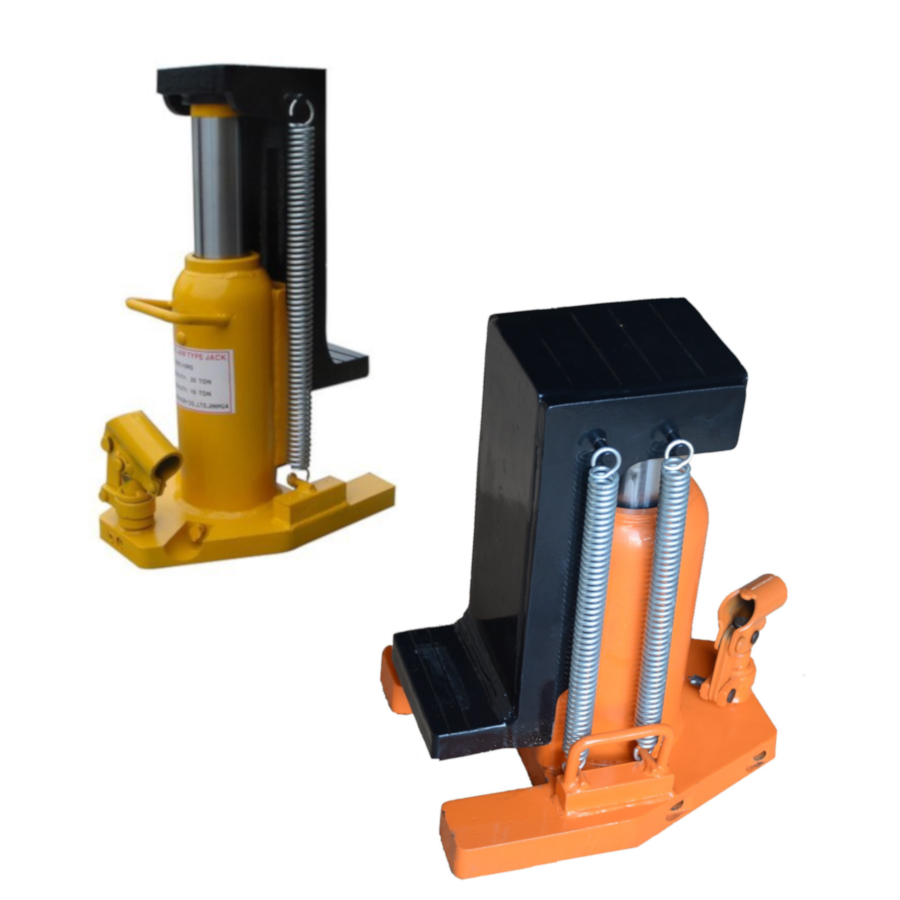

Hydraulic Toe Jack – Industrial Claw Type (MHC Series)

The MHC Series of Toe Jacks have an Industrial Claw type design and are available in various capacities from 2500kg up to 25000kg.

They are designed with dual lifting purposes in mind, using the toe section when lifting items with low clearances or the using the head of the Jack when lifting items with high clearances.

Each model is fitted with a safety valve for overload protect, a spring assisted return and all models are supplied with a pump handle.

MHC2.5 – 2500kg capacity – Toe lift 20-135mm / Head lift 236-351mm – Head size 78x60mm / Toe size 45x60mm

MHC5 – 5000kg capacity – Toe lift 25-195mm / Head lift 292-462mm – Head size 110x95mm / Toe size 55x95mm

MHC10 – 10000kg capacity – Toe lift 30-185mm / Head lift 325-480mm – Head size 130x115mm / Toe size 70x115mm

MHC15 – 15000kg capacity – Toe lift 30-185mm / Head lift 345-510mm – Head size 150x125mm / Toe size 70x125mm

MHC25 – 25000kg capacity – Toe lift 35-175mm / Head lift 340-485mm – Head size 175x145mm / Toe size 75x145mm

For further details, please refer to the PDF specification sheets on this page.
