Product description

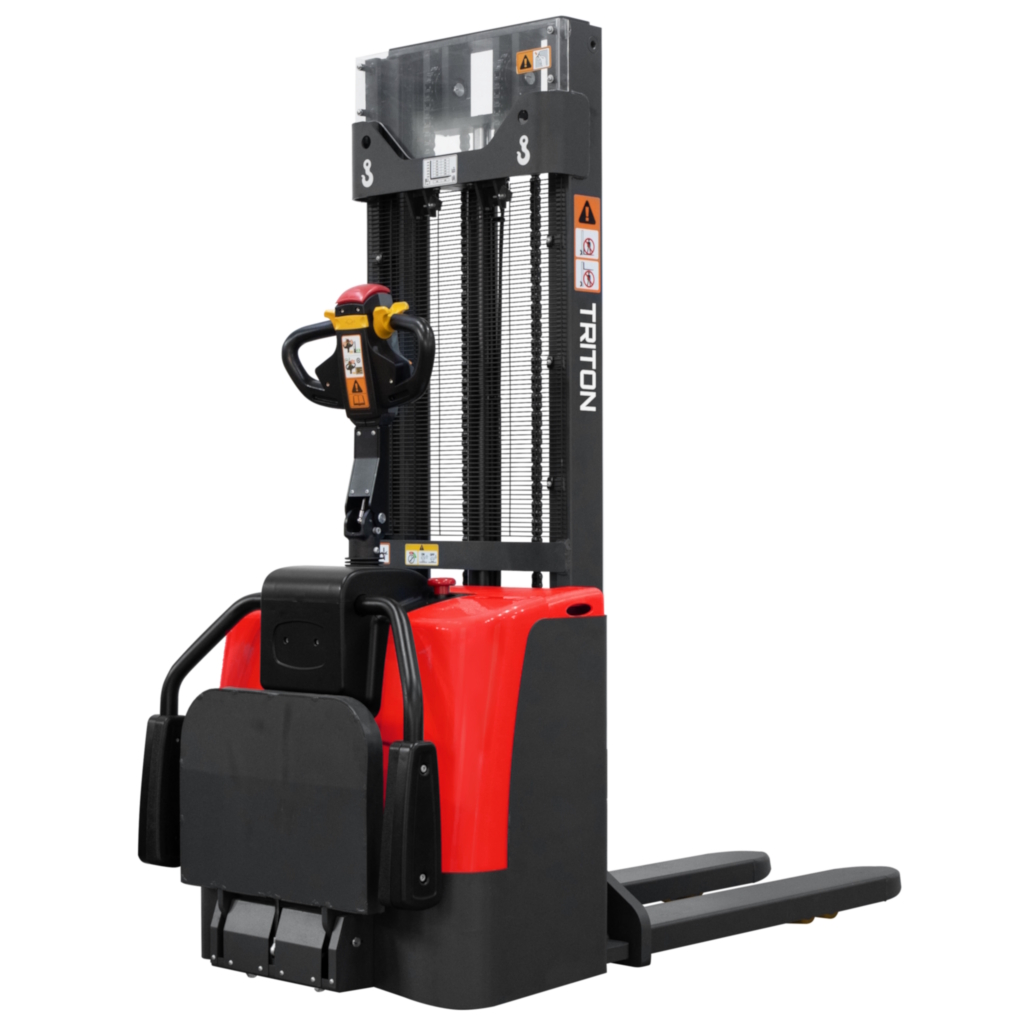

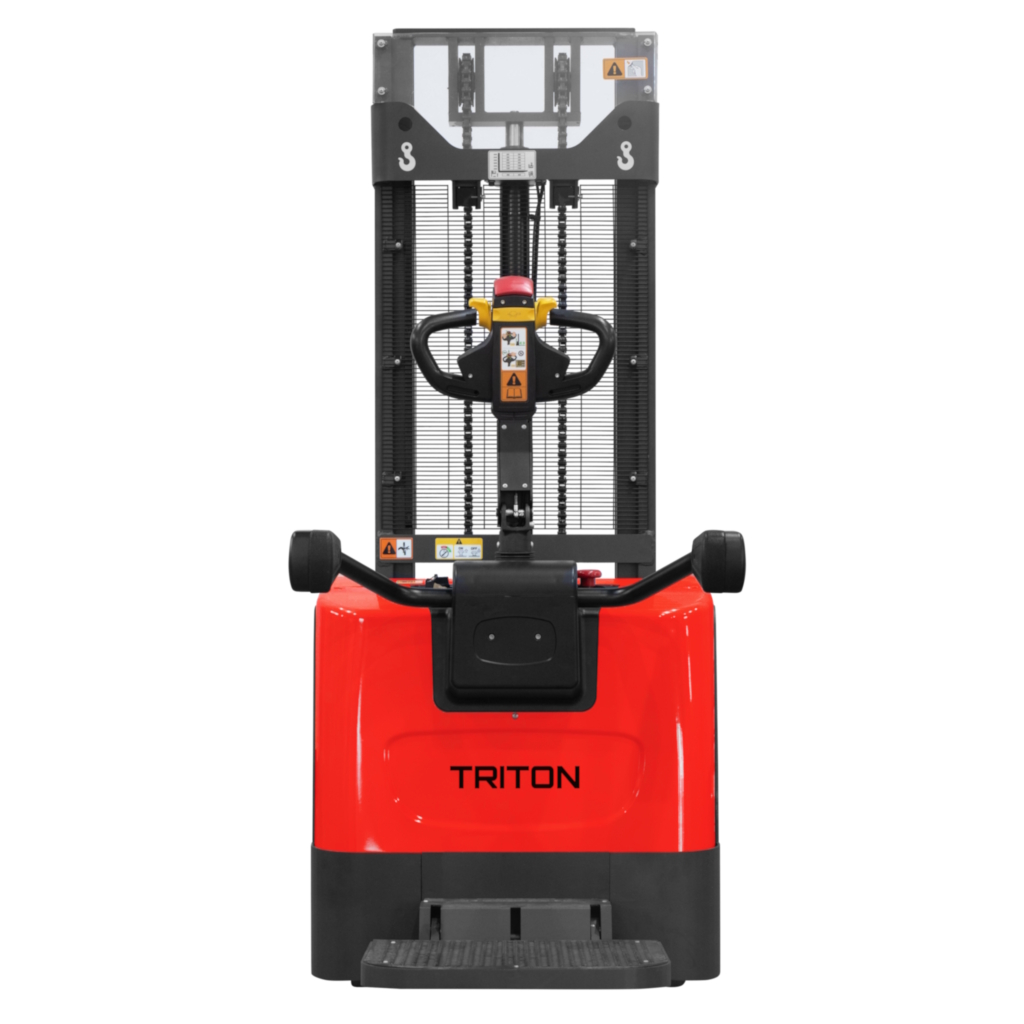

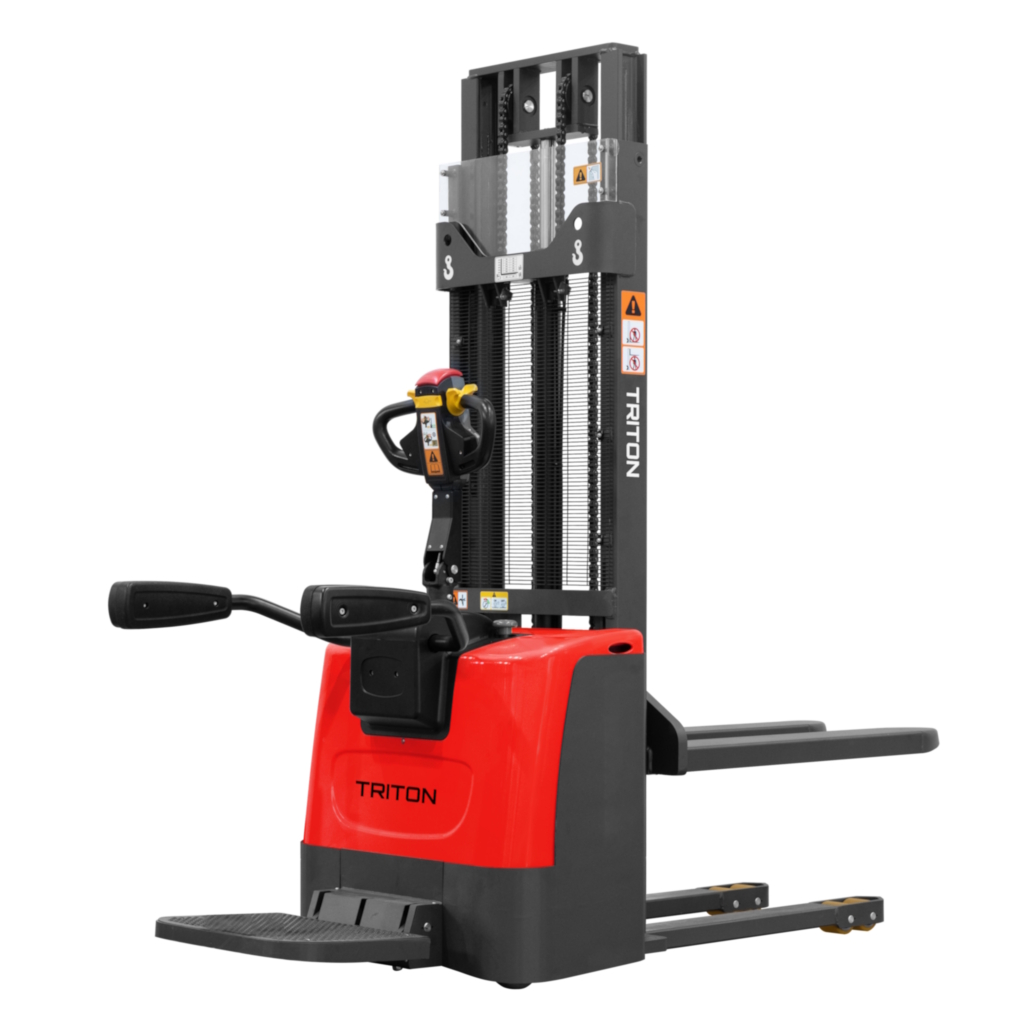

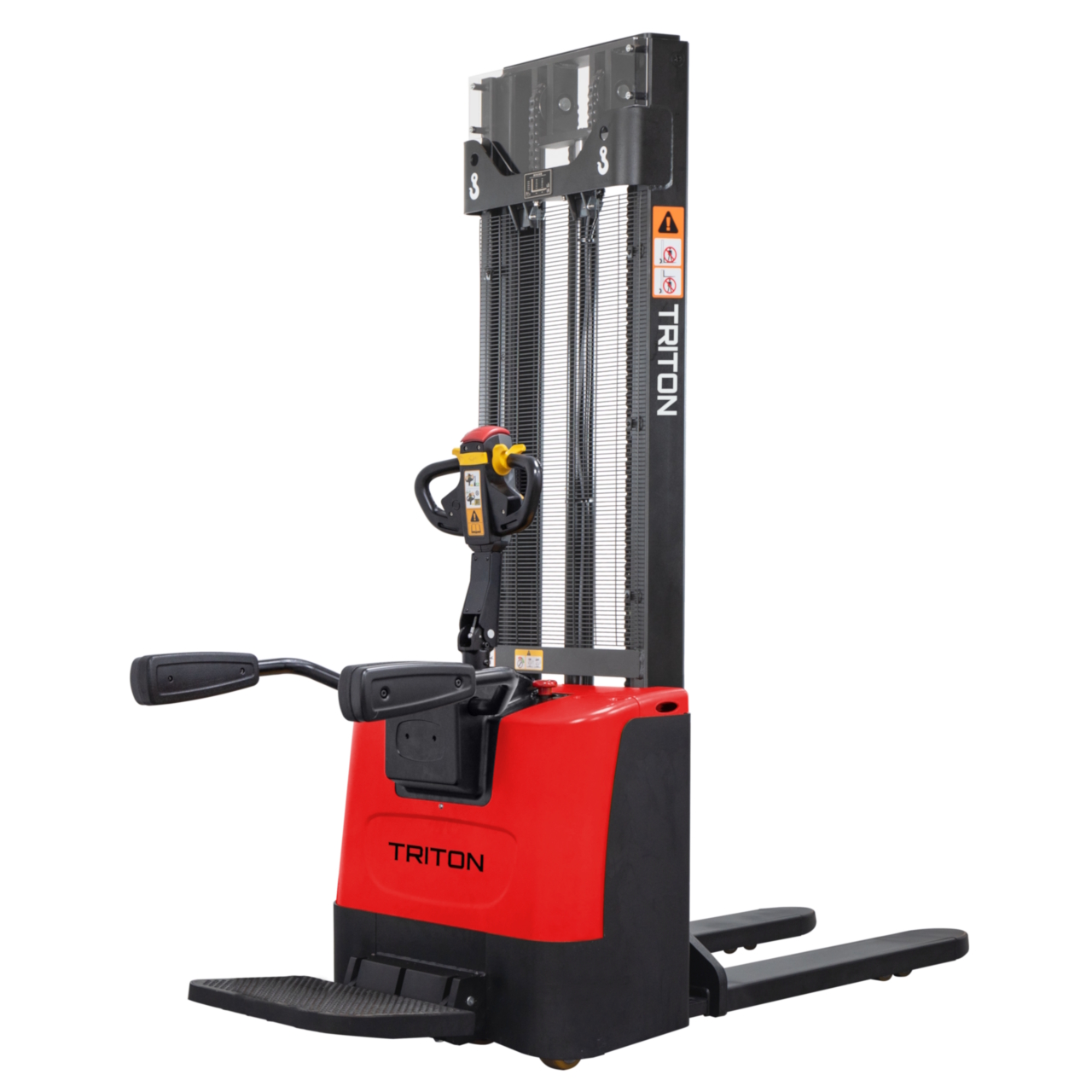

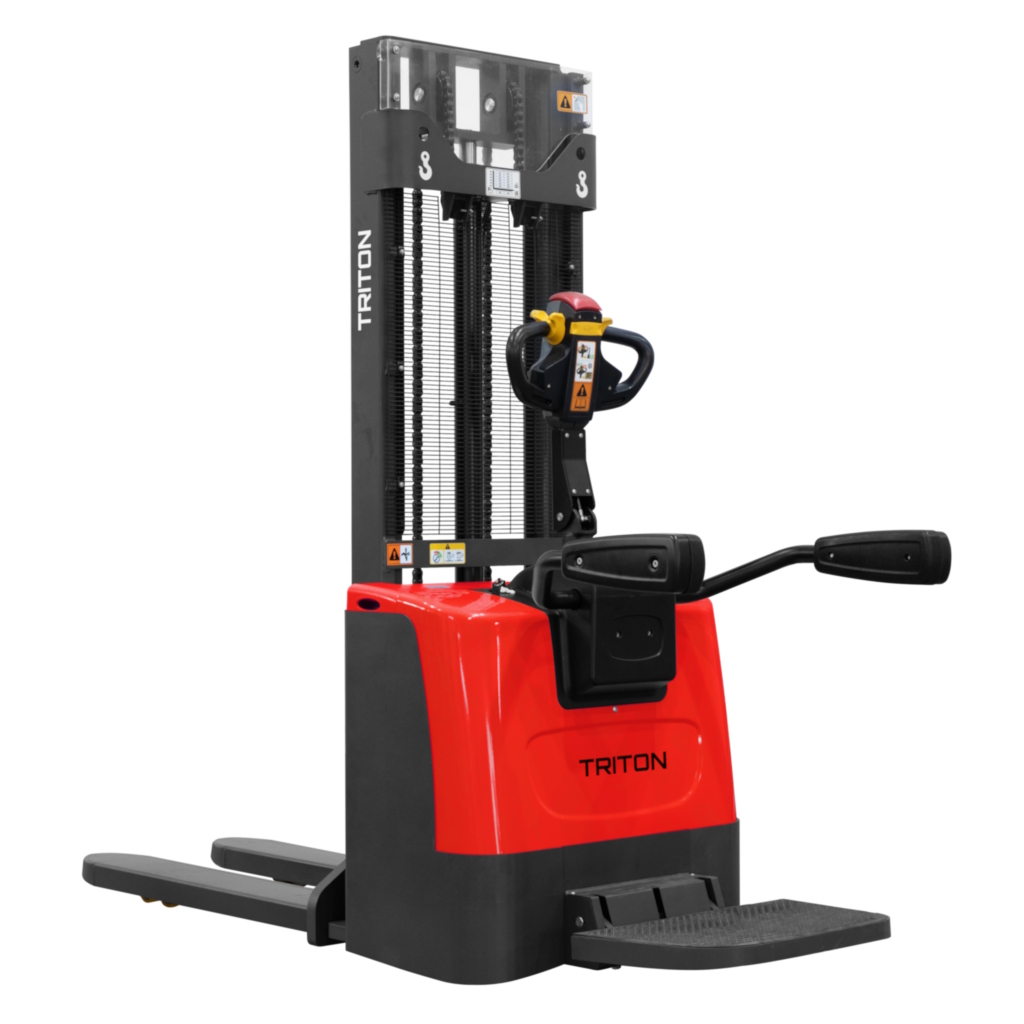

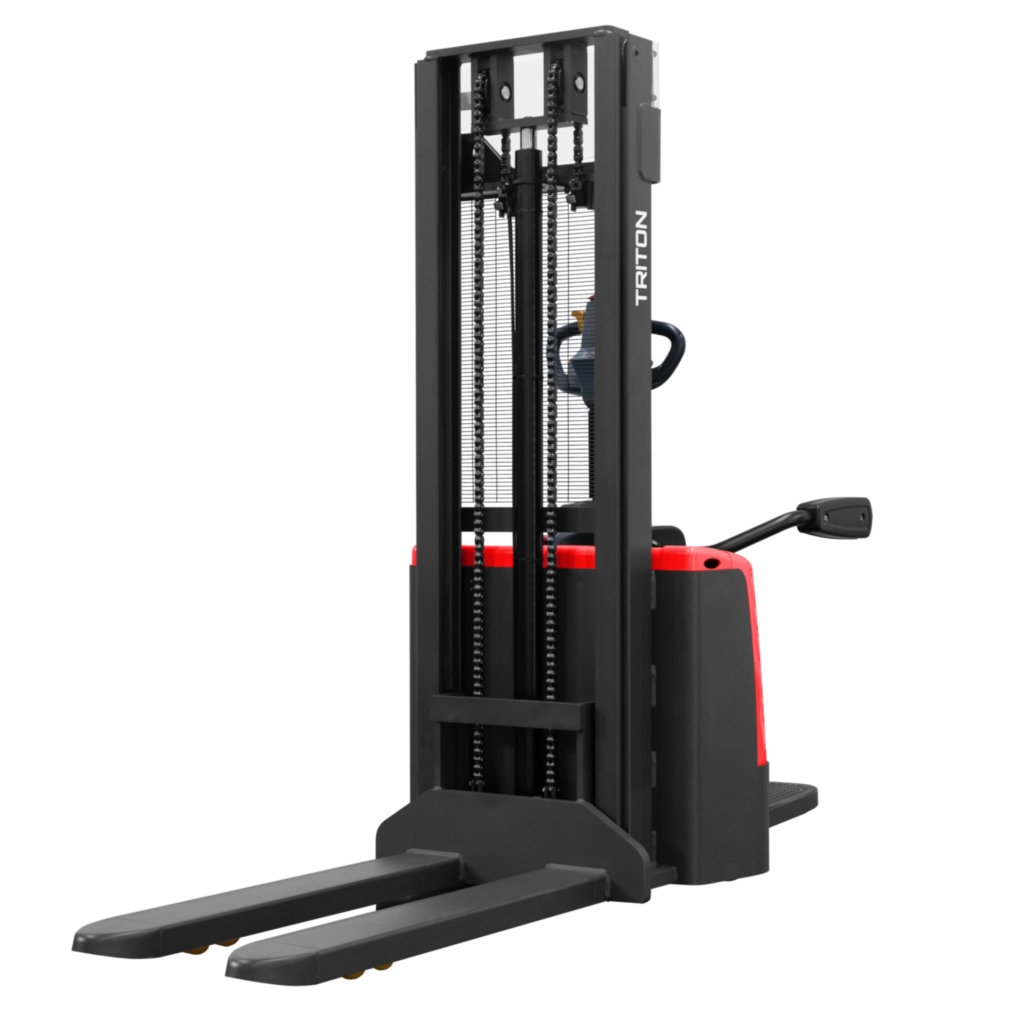

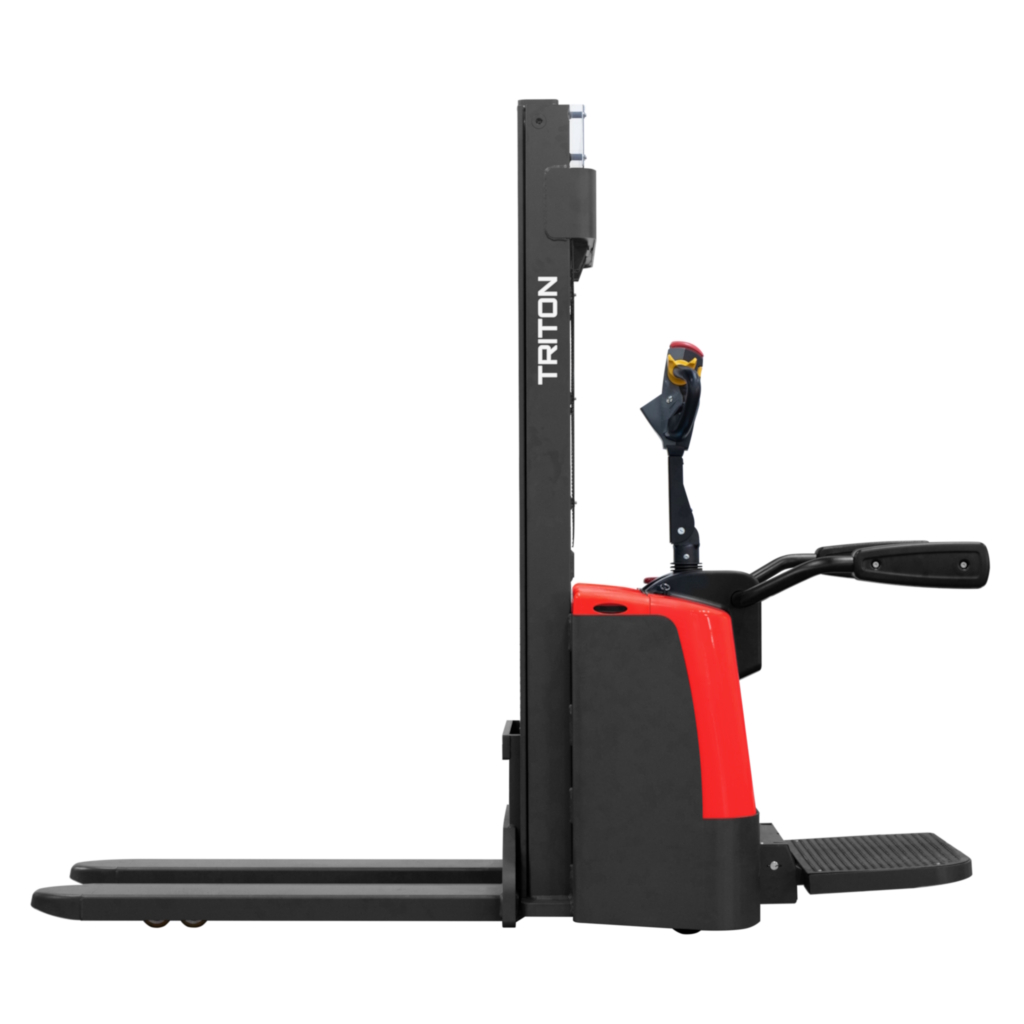

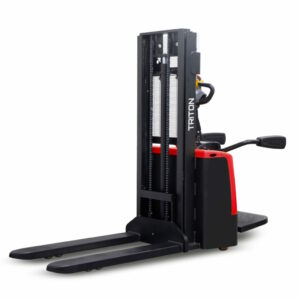

RS15H-3500 Electric Rider Stacker – 1500kg Capacity, 3500mm Lift Height

The RS15H Electric Rider Stacker combines smooth operation, intelligent controls and rugged construction for
everyday warehouse use. Its variable speed lifting and lowering system allows the operator to place pallets
accurately and safely, while reducing mechanical shock, vibration and noise.

The patented multifunctional intelligent tiller handle includes key operating controls and an integrated fault code display, helping reduce service time and simplify maintenance. With a high-strength mast, reinforced forks, double-chain design and multiple built-in safety features, the RS15H is built for dependable operation and long service life.

Key Features

• 3500mm lift height
• 1500kg rated load capacity
• 600mm load centre
• Battery electric rider operation
• Variable speed lifting and lowering
• Proportional control for accurate pallet placement
• Smooth lowering with automatic buffering near ground level
• Patented multifunctional intelligent tiller handle
• Integrated fault code display for easier troubleshooting
• Turtle speed and upright drive functions
• Emergency reverse switch
• Built-in charger with hidden charging plug
• Double-chain mast design for improved strength and stability
• High-strength reinforced forks
• Low-voltage battery protection

Benefits

The RS15H is designed to make pallet stacking easier, safer and more efficient. Variable speed control helps operators lift and lower loads smoothly, improving accuracy when placing pallets onto racking or lowering them to the floor. The rider platform and ergonomic tiller handle improve comfort during operation, while the compact design supports manoeuvrability in tighter warehouse spaces.

Safety Features

• Emergency reverse switch to help protect the operator and nearby personnel
• Travel speed automatically reduces to 2km/h when forks are raised above 500mm
• Cylinder explosion-proof valve helps prevent uncontrolled descent if oil pipes rupture
• Full mast protection
• Built-in charger
• Lifting height limit of 1800mm when the platform and protection arms are open

SHIPPING COSTS – The prices shown are for a palletised delivery, a forklift truck will be required for unloading the stacker.

Alternatively if you haven’t got access to a forklift we can arrange for a direct delivery, unpalletised (extra charges may apply)

For further information, please refer to the full technical PDF on this page, or contact our sales and technical team.

Supplied with an EC Declaration Of Conformity and issued with a LOLER certificate.

For shipping to the Highlands or other Islands – please contact us for an accurate cost
