Product description

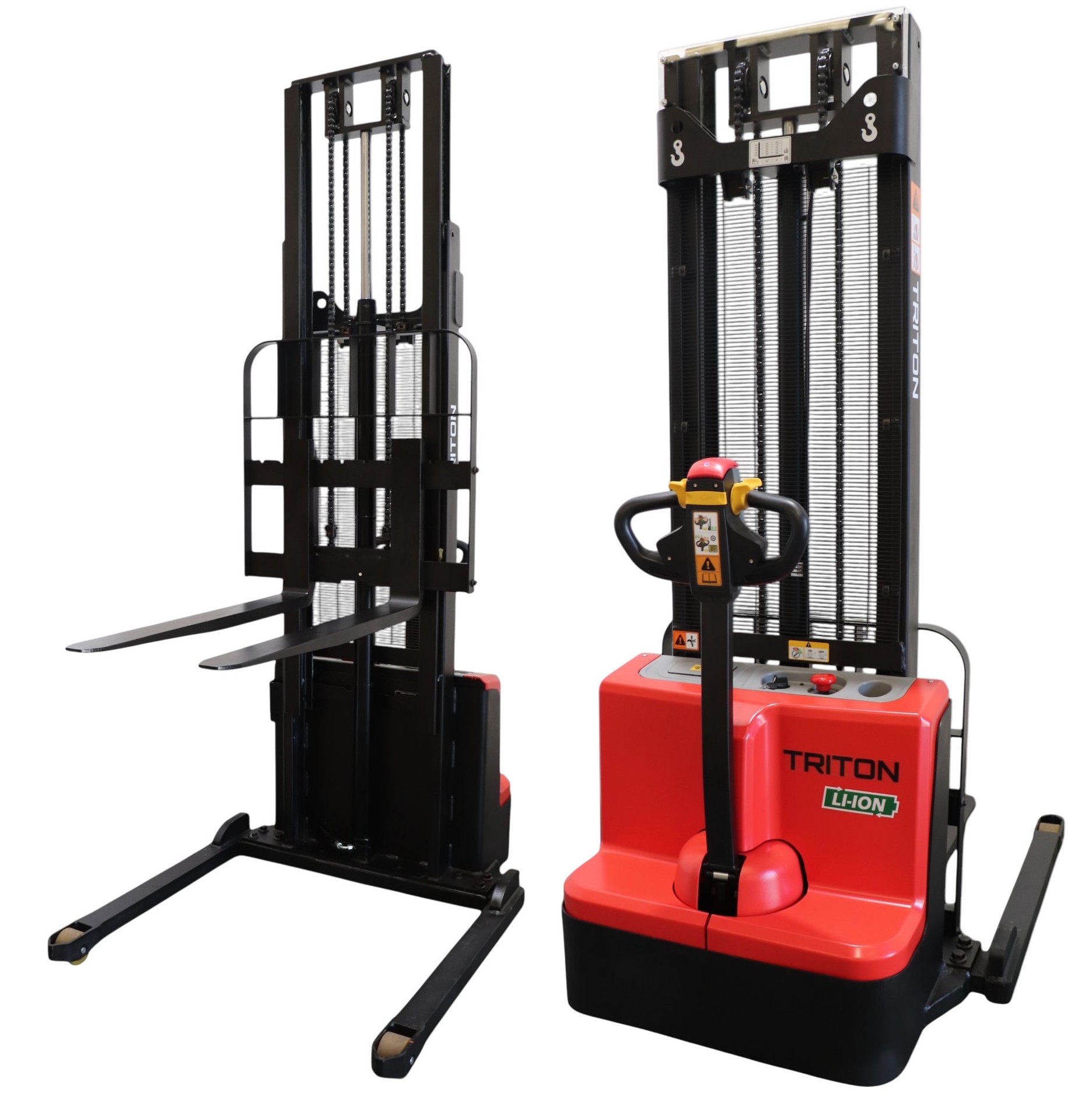

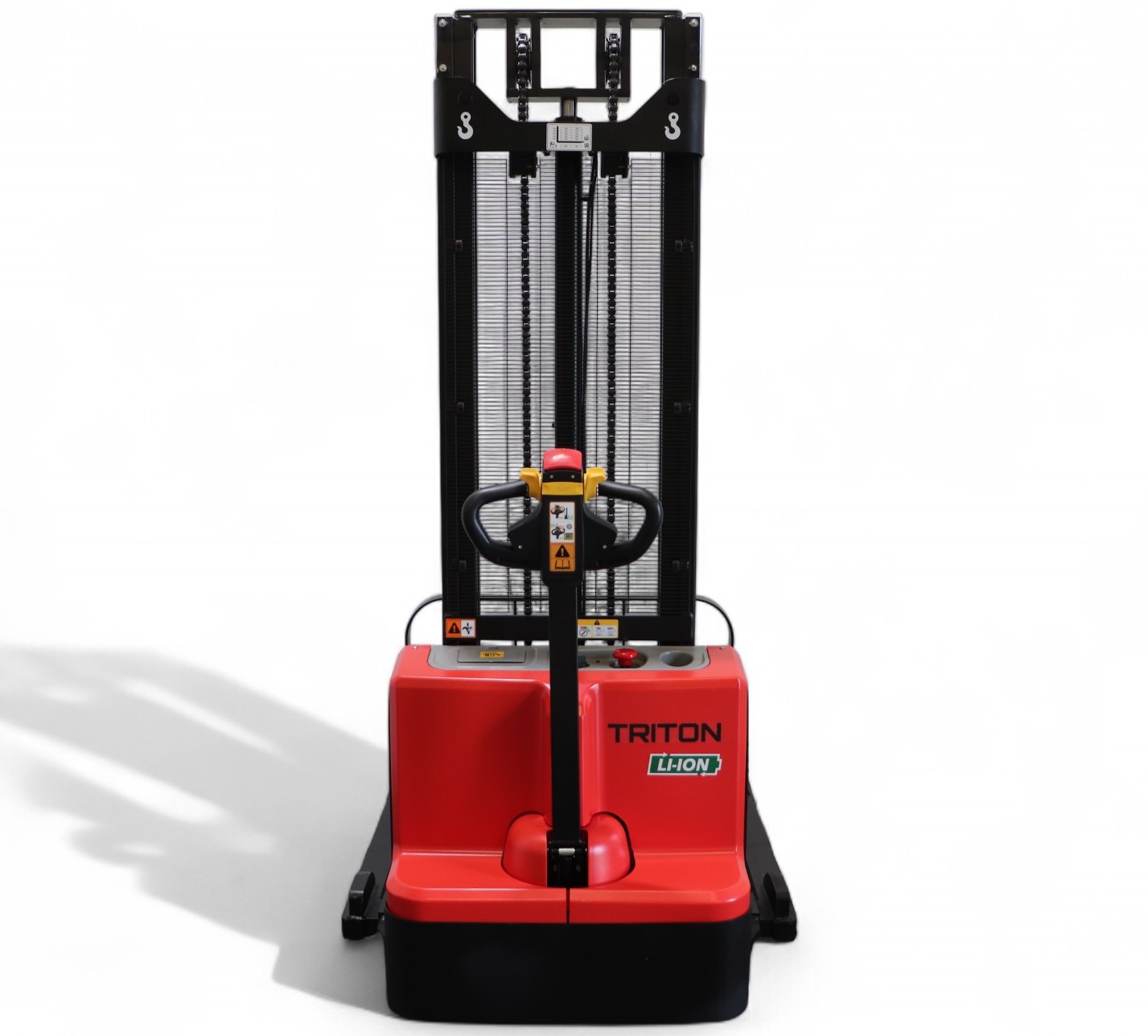

ESS15 TRITON Fully Electric Straddle Stacker 1500kg

The ESS15 is a fully electric straddle stacker unit with a 1500kg capacity and lift height of 3.5 metres.

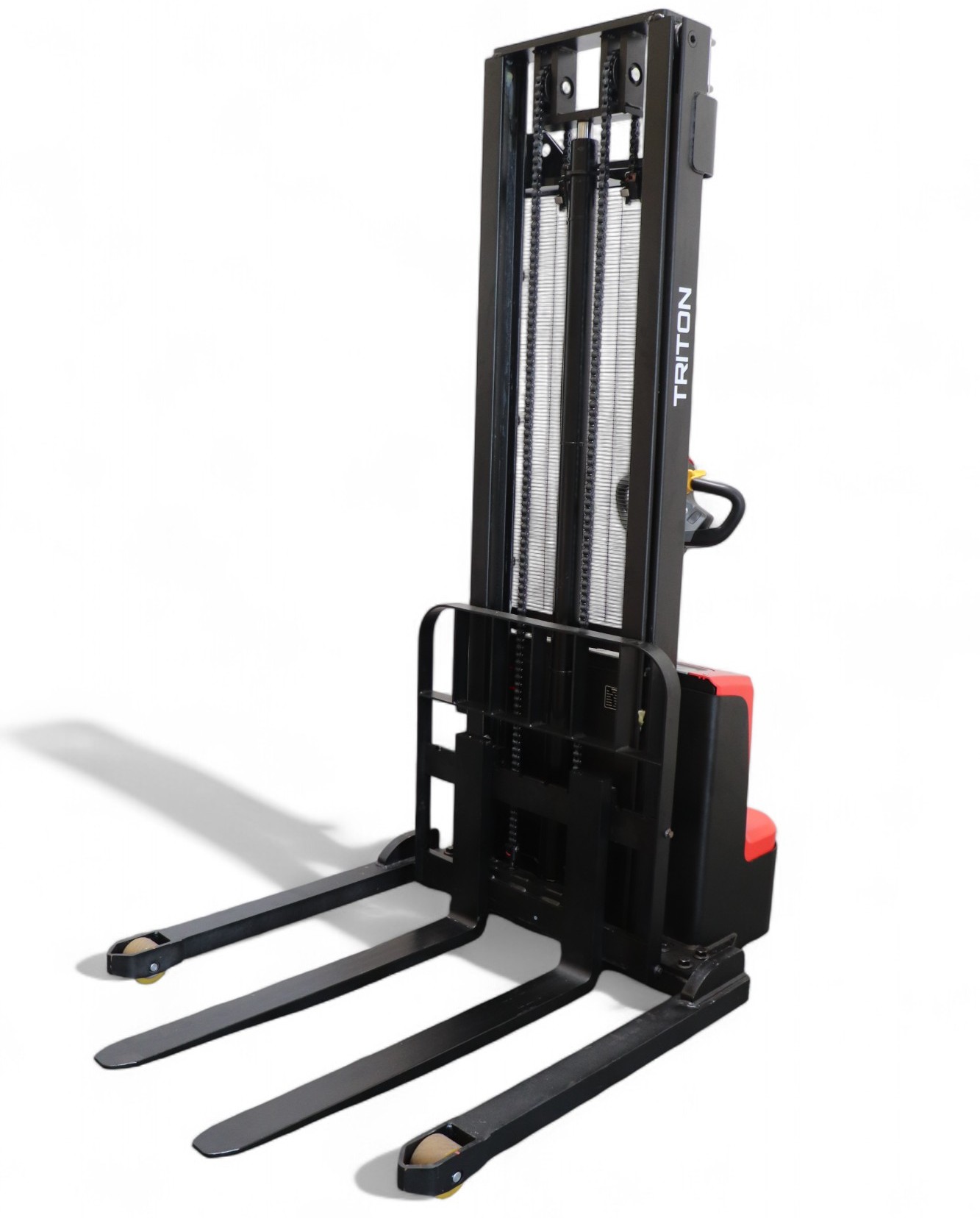

A straddle stacker is designed to work with open and closed bottom pallet and stillages. The base feet straddle around the outside of the pallet or stillage, therefore allowing free movement of the inner forks to raise the load.

The width between the straddle legs can be adjusted to allow a gap of 970mm, 1110mm or 1250mm, whilst the inner forks can be adjusted to an outer width of between 200mm – 800mm.

Some of the features of this modern electric straddle stacker unit include:

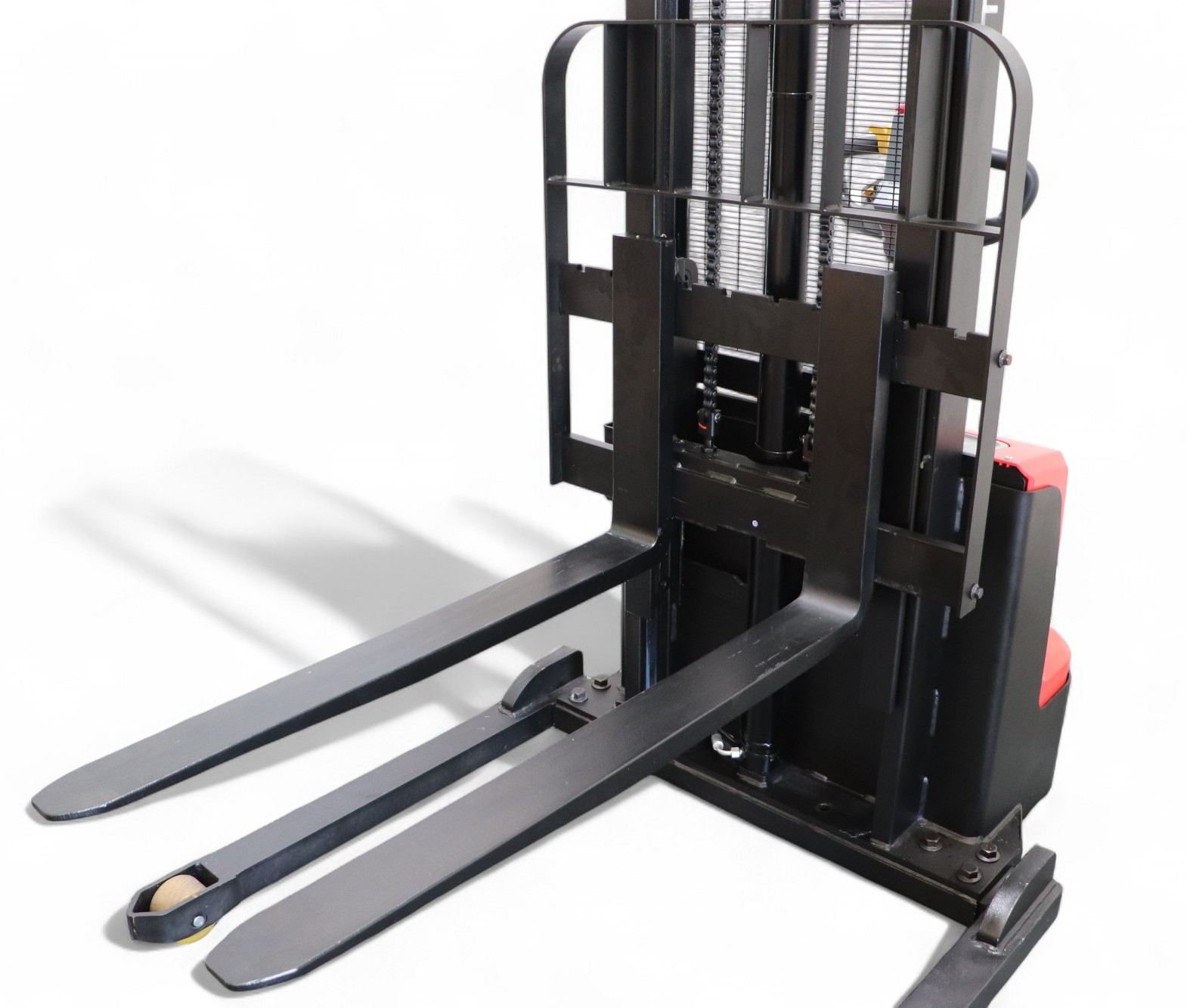

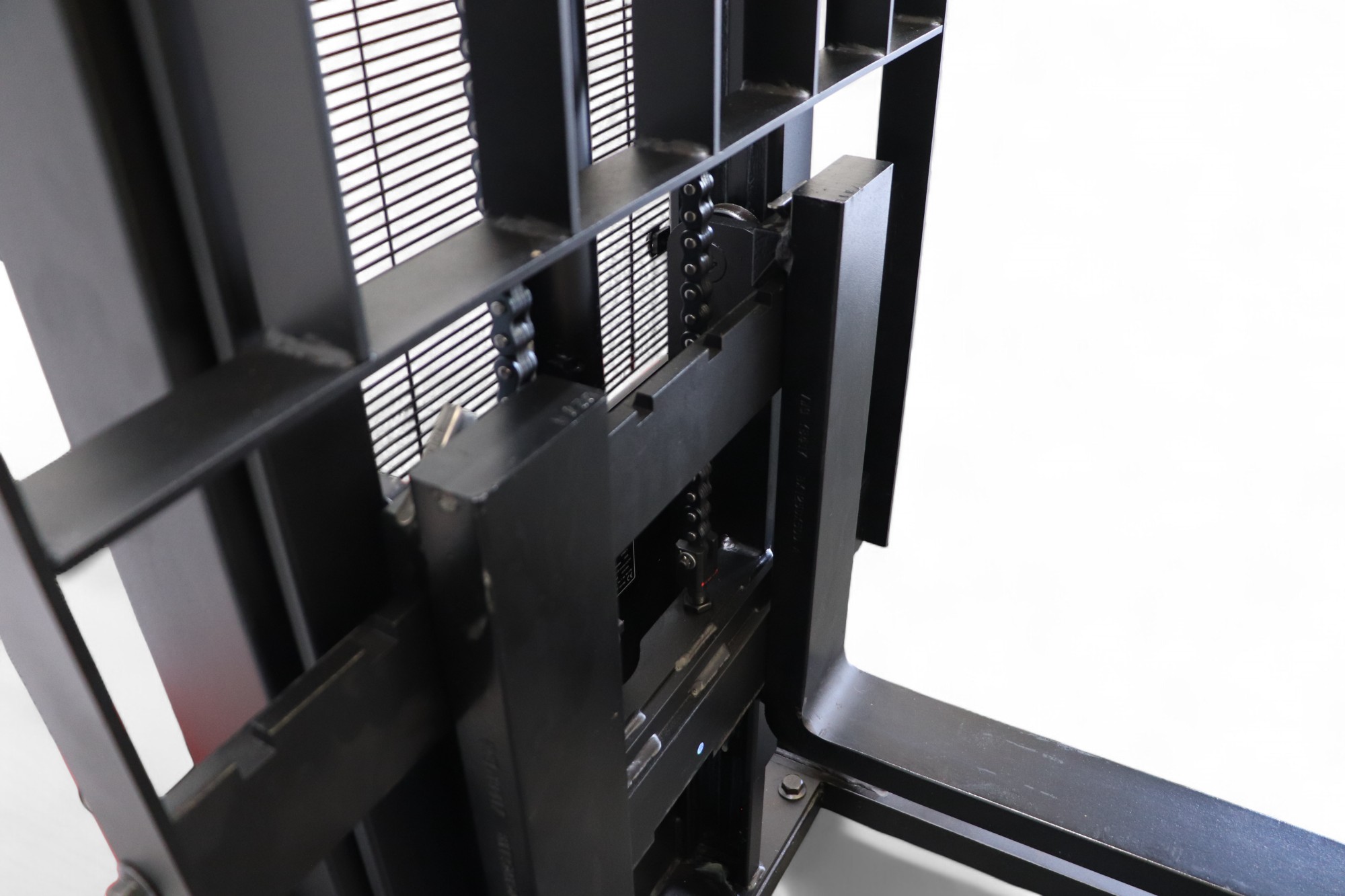

Fork length of 1070mm which have an adjustable width of 200mm – 800mm,
Adjustable Straddle Legs can be set to the following widths 970mm, 1110mm, 1250mm, ideal for lifting pallets or stillages upto 1250mm width.

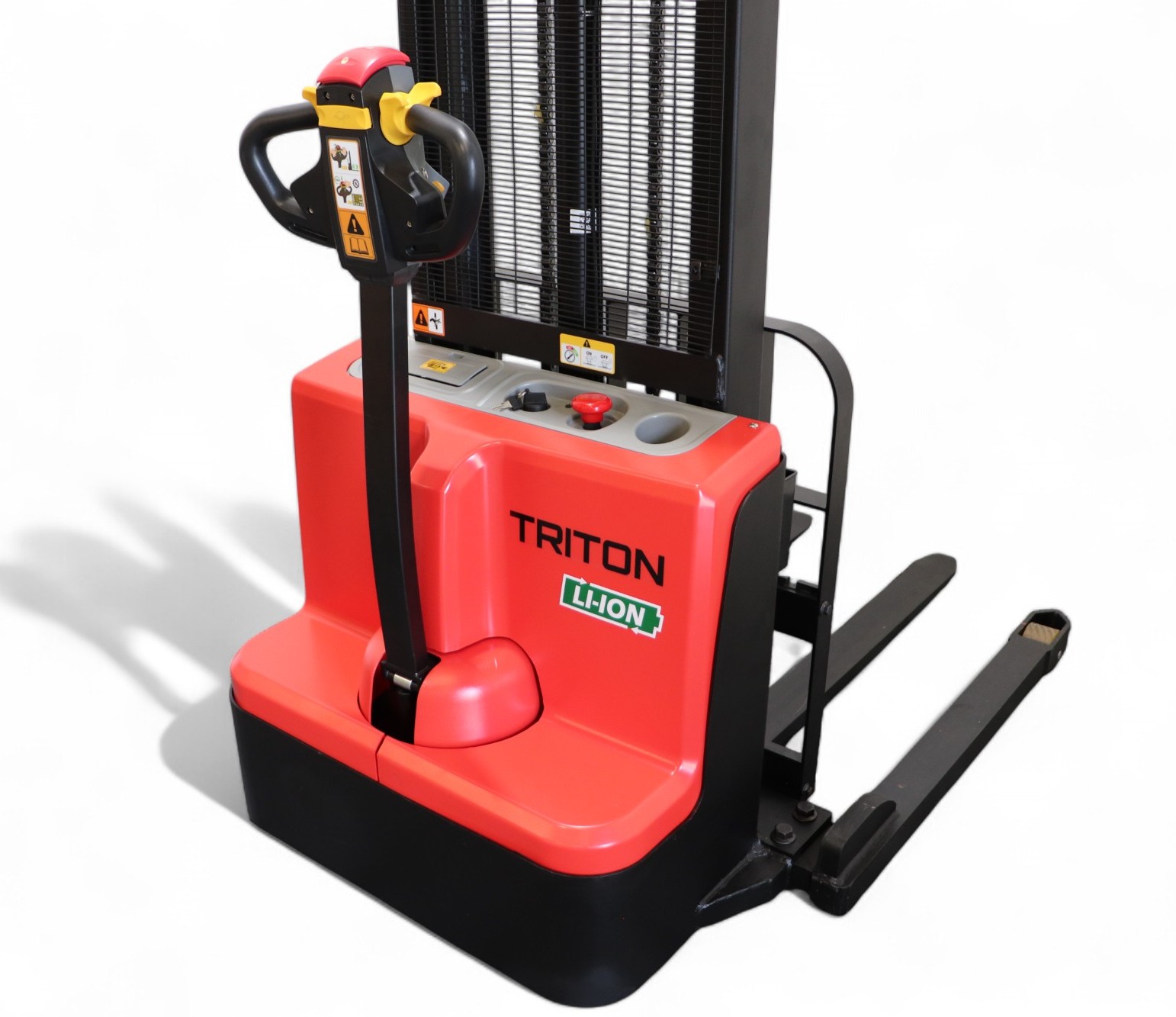

24V 60Ah Lithium Battery, with a built in mains 15A charger for connection to the mains via 3 pin UK plug
Variable speed controlled lowering and lifting with patented technology to allow smooth lifting and lowering
Low mast static height
Load backrest (LBR) for enhanced safety during material handling

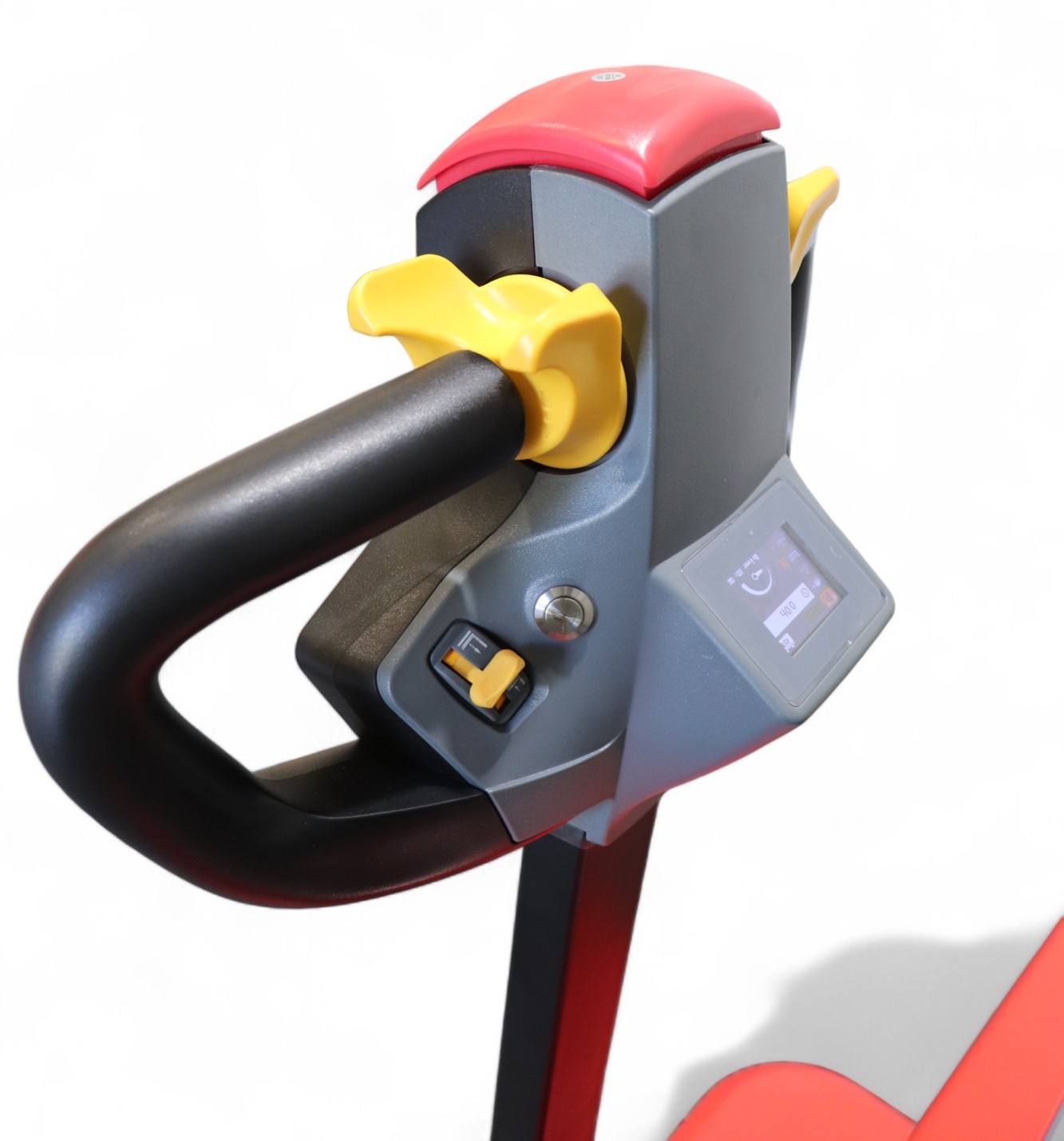

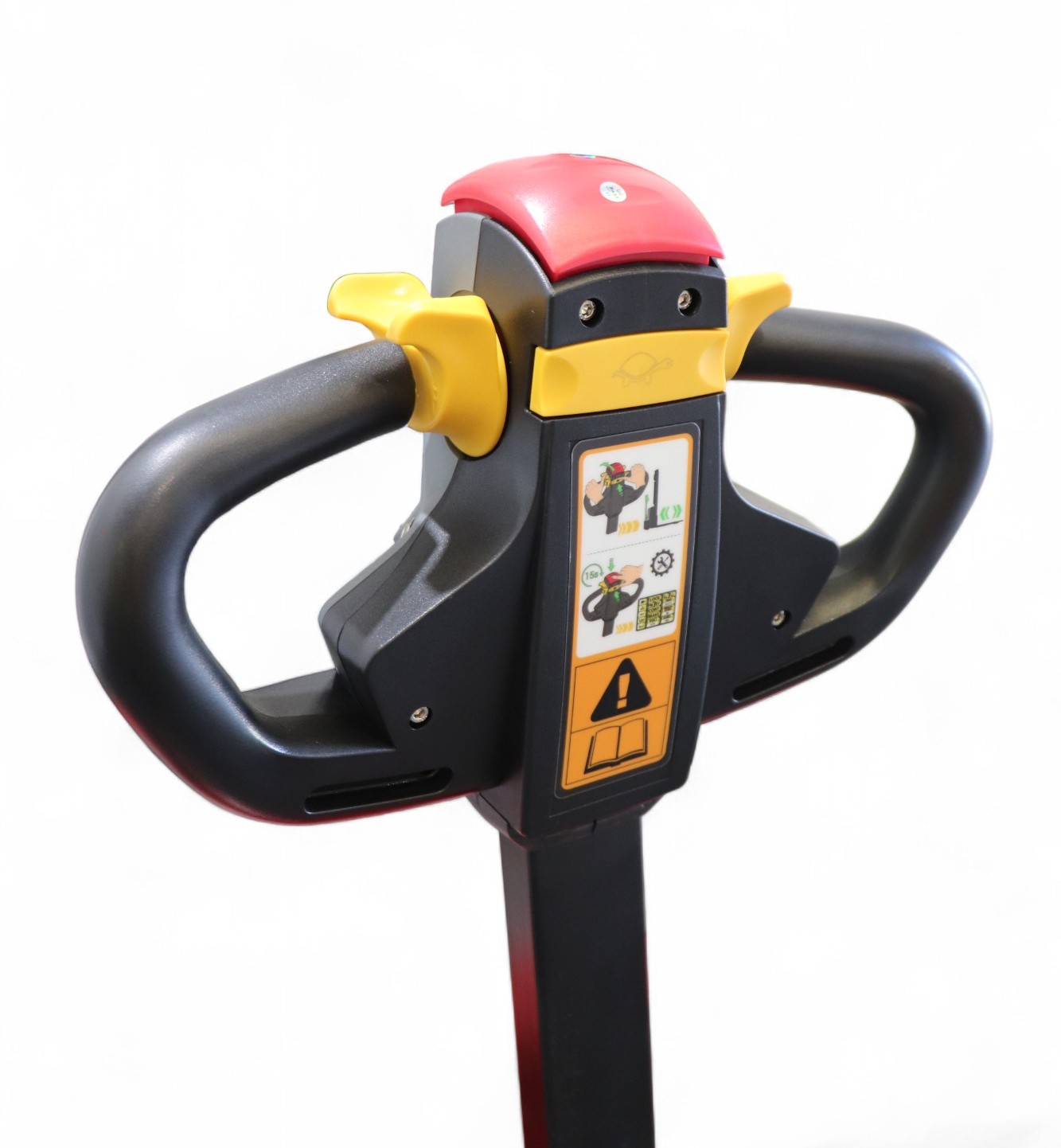

Multifunction intelligent handle with LED display
Dual speed travel movement with Turtle mode for controlled manoeuvring
1500kg capacity

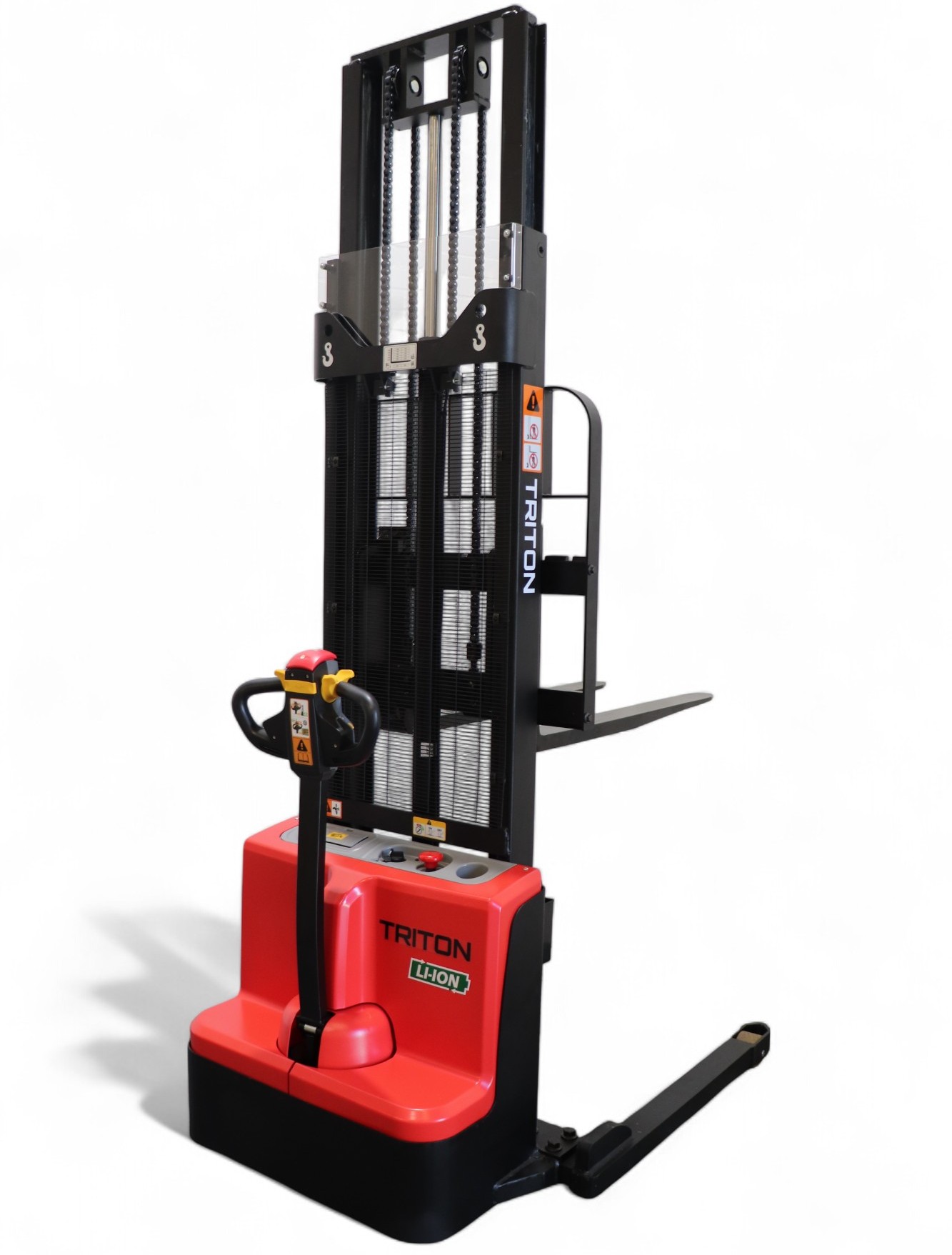

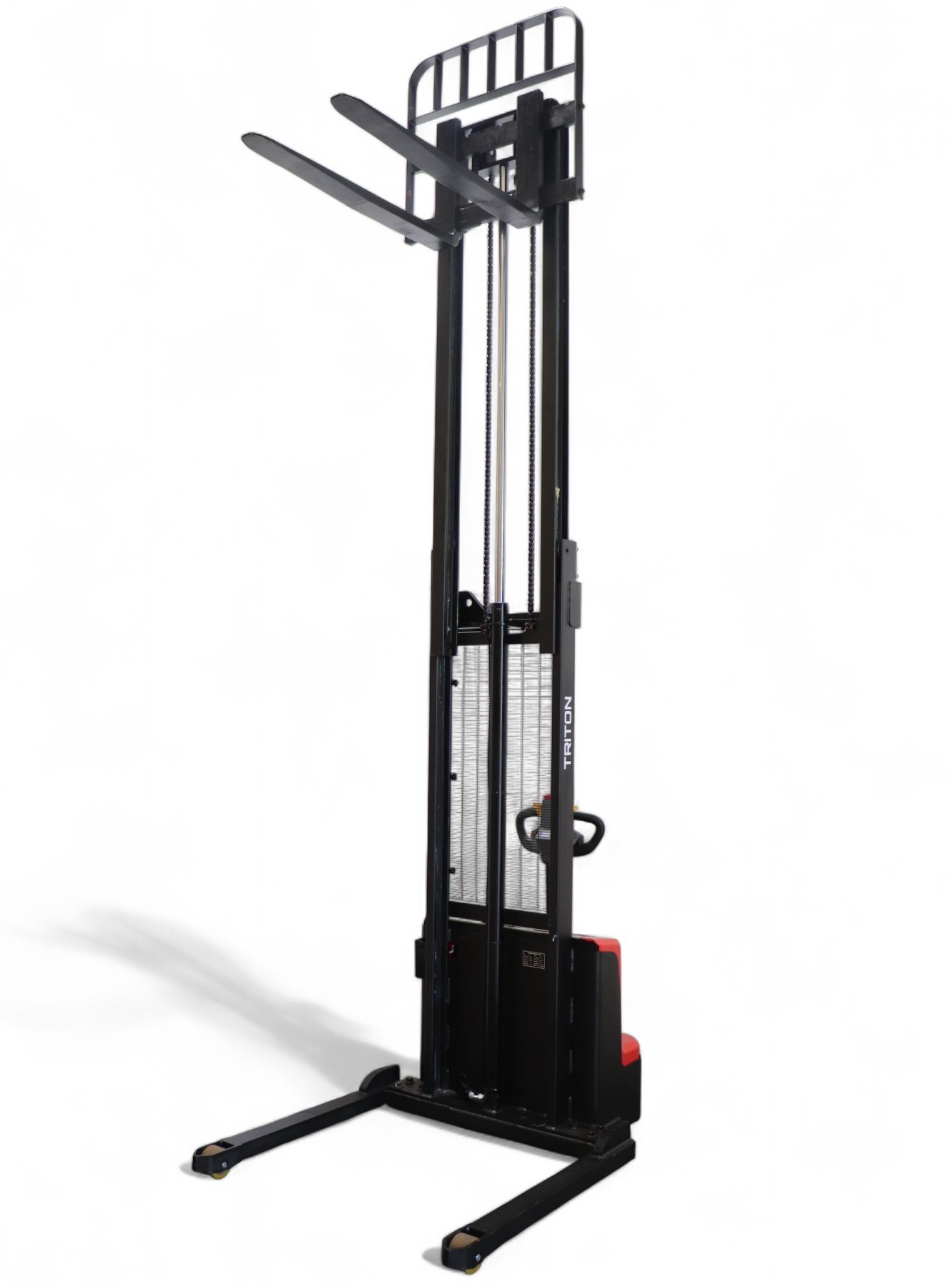

3.5 metre lift height

Please Note: This electric pallet straddle stacker unit is suitable for most closed-bottom pallets and stillages.

SHIPPING COSTS – Delivery will be made via a roll on roll off tail lift service

For further information, please refer to the full technical PDF on this page, or contact our sales and technical team.

Supplied with an EC Declaration Of Conformity and issued with a LOLER certificate.

For shipping to the Highlands or other Islands – please contact us for an accurate cost
