Product description

3 METRE ELECTRIC ORDER PICKER

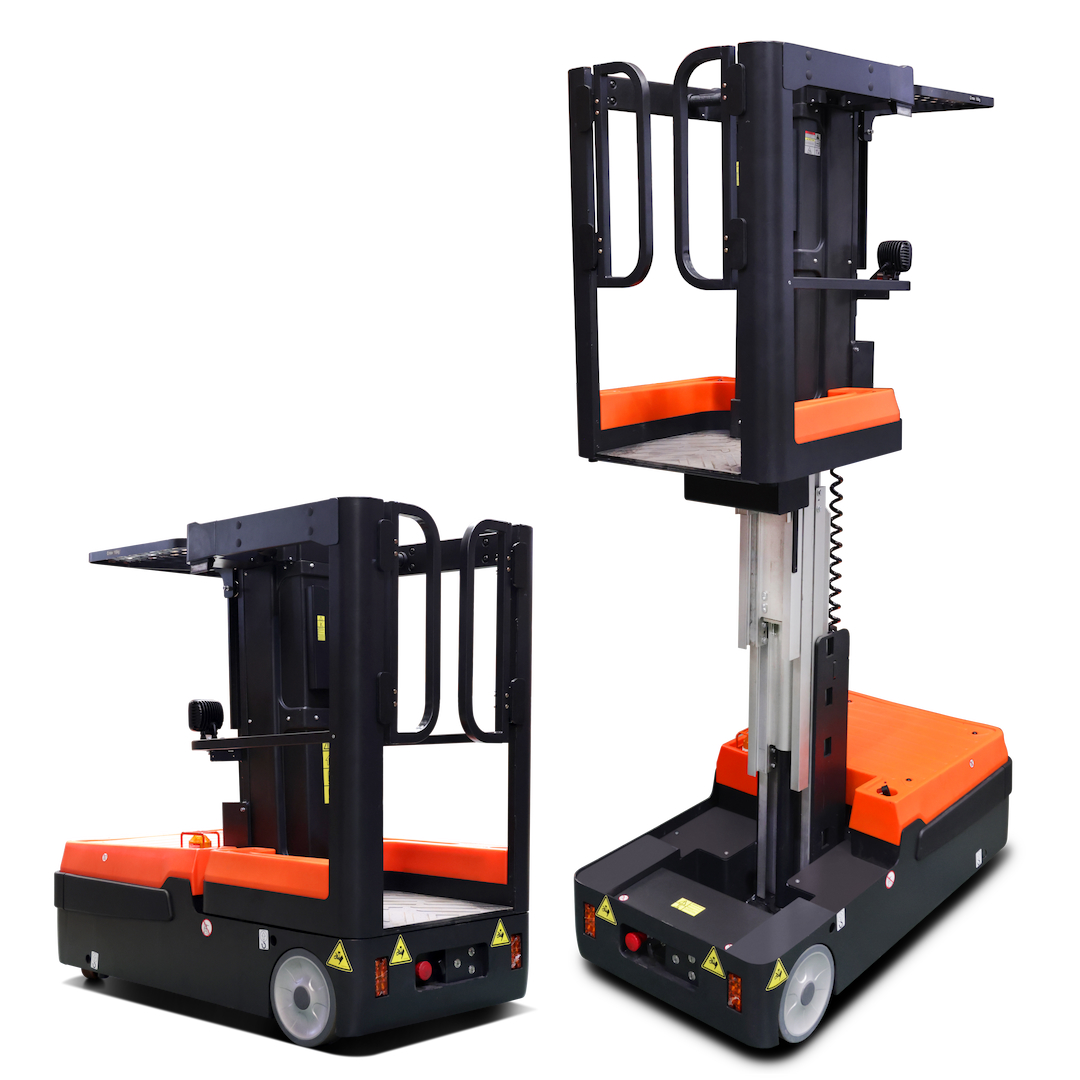

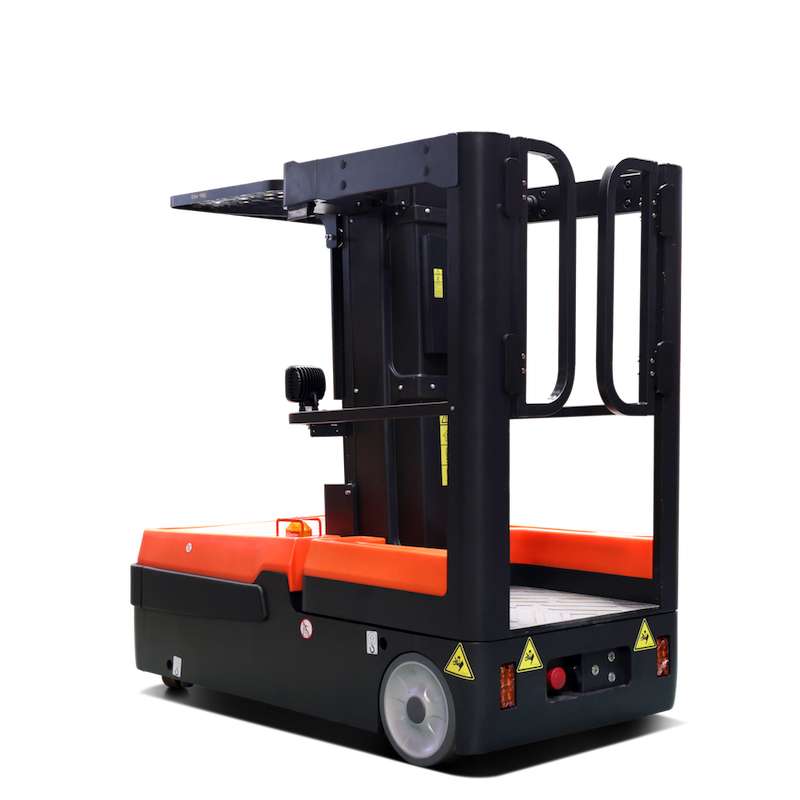

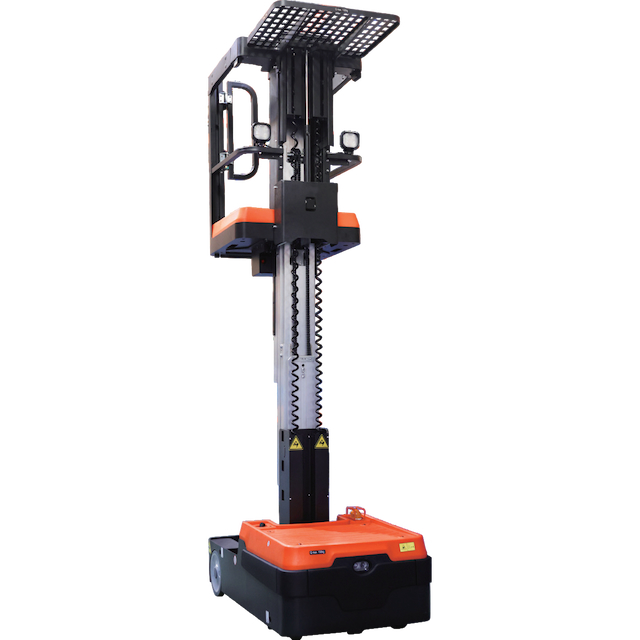

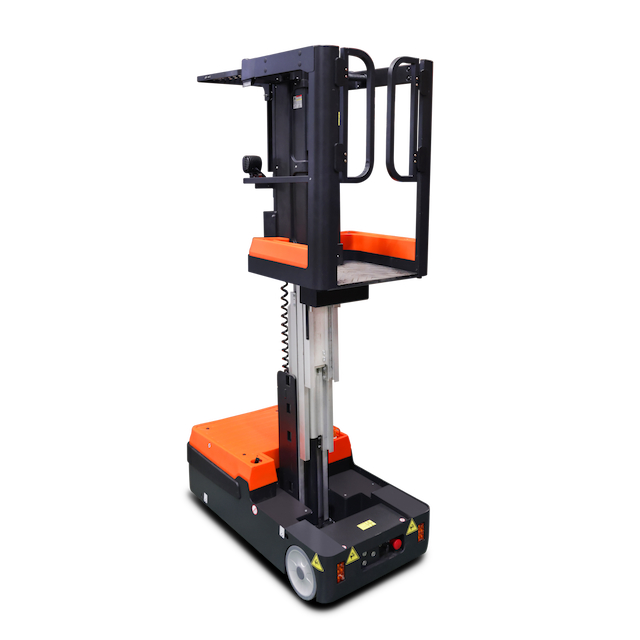

Electric Order Picker Model: OPH01E

OPH01E is a modern fully electric order picker with a maximum lift height of 3 metres, which gives a working height of up to approximately 5 metres.

The OPH01E has many features, which include:

LCD Display (Showing safety warnings, speed, steering angle, operator hints)
Pin Code Lock (with RFID card access)
Customised left and right multi-function handles providing quick and accurate responses – enabling lifting, travelling and steering to be used simultaneously
Buzzer, warning light, rear light and blue ray running light
Automatic closing doors during operation
High-strength aluminium alloy profiles for great stability and utilising a lower centre of gravity
Adjustable front shelf height ensures good visibility and field of view

Travel speed up to 5.5km/h

Laden gradeability of 5%

Low noise

Advanced safety if further extended to the lifting and lowering with proportional hydraulics, ensuring a smooth raising and lowering

Curtis Controller using CAN-bus technology

Narrow section of 750mm width and a small turning circle

Load Capacities:
Operator compartment: 135kg (Approx. 21st)
Load tray shelf: 100kg (220lbs)
Load deck: 150kg (330lbs)

For further information, please refer to the full technical PDF on this page, or contact our sales and technical team.

Supplied with an EC Declaration Of Conformity and issued with a LOLER certificate.

For shipping to the Highlands or other Islands – please contact us for an accurate cost
