£1,600.00 £1,920.00 Inc. VAT

1000kg U shaped static electric lift table

SKU: HTF-U

Shipping costs

England and Wales: £50.00
Industrial Scotland: £75.00
Scottish Highlands: £90.00
Warehouse collection: FREE
You will need to select one of the above from the shipping zone dropdown at the checkout.

Product description

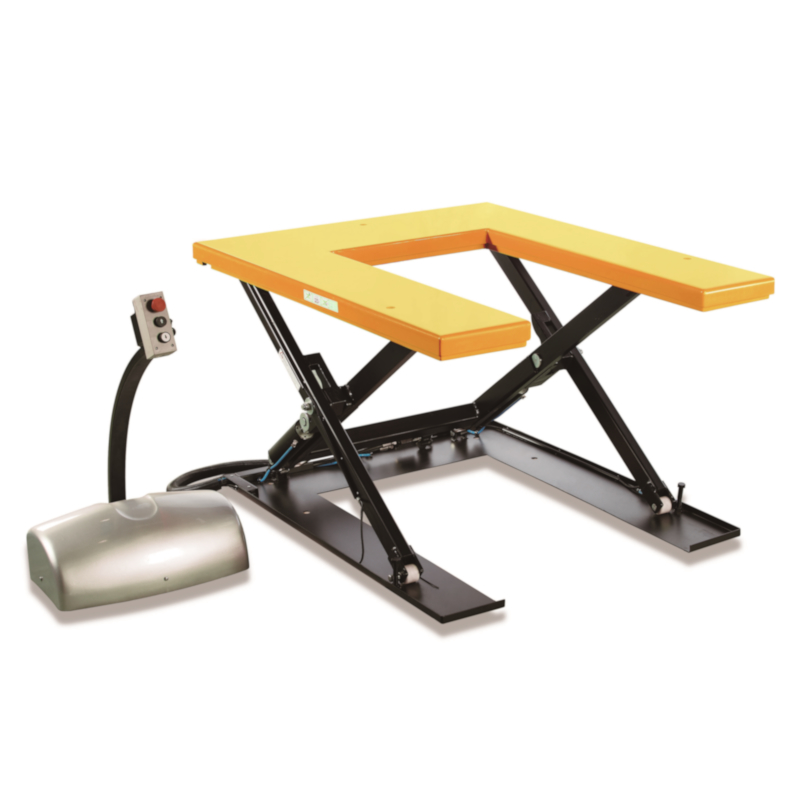

1000 kg U Shaped Static Electric Lift Table
Low profile static electric lift tables can be used for many purposes including piece
and production work. Their low profile usually eliminates any need for a pit and
when coupled with the ramp, makes the continual lifting of items a simple task.

U-shaped static electric lift tables also come with a remote power pack with a pedestal fitted to it, leading to the controls buttons – up, down and a safety stop button. There is also a further safety perimeter which halts descent when it comes into contact with any obstructions.

Features include:
1000kg capacity
Freestanding control panel with 2.8m cable
Robust steel construction
Powerful 0.75kW lifting motor
Fast lift speed of approx. 42mm per second
High quality powder coating
Requires a 380V/16A 3 Phase connection and is supplied with a 5 pin male coupler
Safety cut off bars on all sides
Safety cut off valve if a power failure
Overload protection
German design and components
CE certified , ISO 14121-1:2007-12, ISO12100-1:2004-04, ISO 12100-2:2004-04, EN 1570:198/A1:2004, EN 60204-1:2006-06

Table dimensions:
Max table height: 800mm
Min table height: 80mm
Gap between U section: 575x1050mm
Table sizes: 1450mm x 1140mm x 50mm
