AC20R Series Reel Carrying Pallet Truck

£519.00 – £634.00

For rolls of 800-1200mm and 1200-1600mm

+More information
SKU: AC20R Series

Shipping costs

England and Wales: £85.00
Industrial Scotland: £125.00
Scottish Highlands: £150.00
Warehouse collection: FREE
You will need to select one of the above from the shipping zone dropdown at the checkout.

Product description

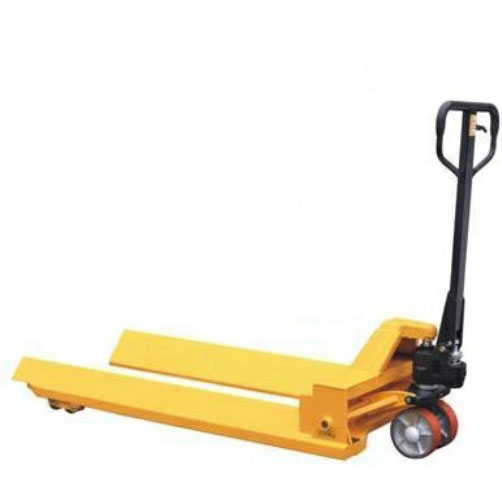

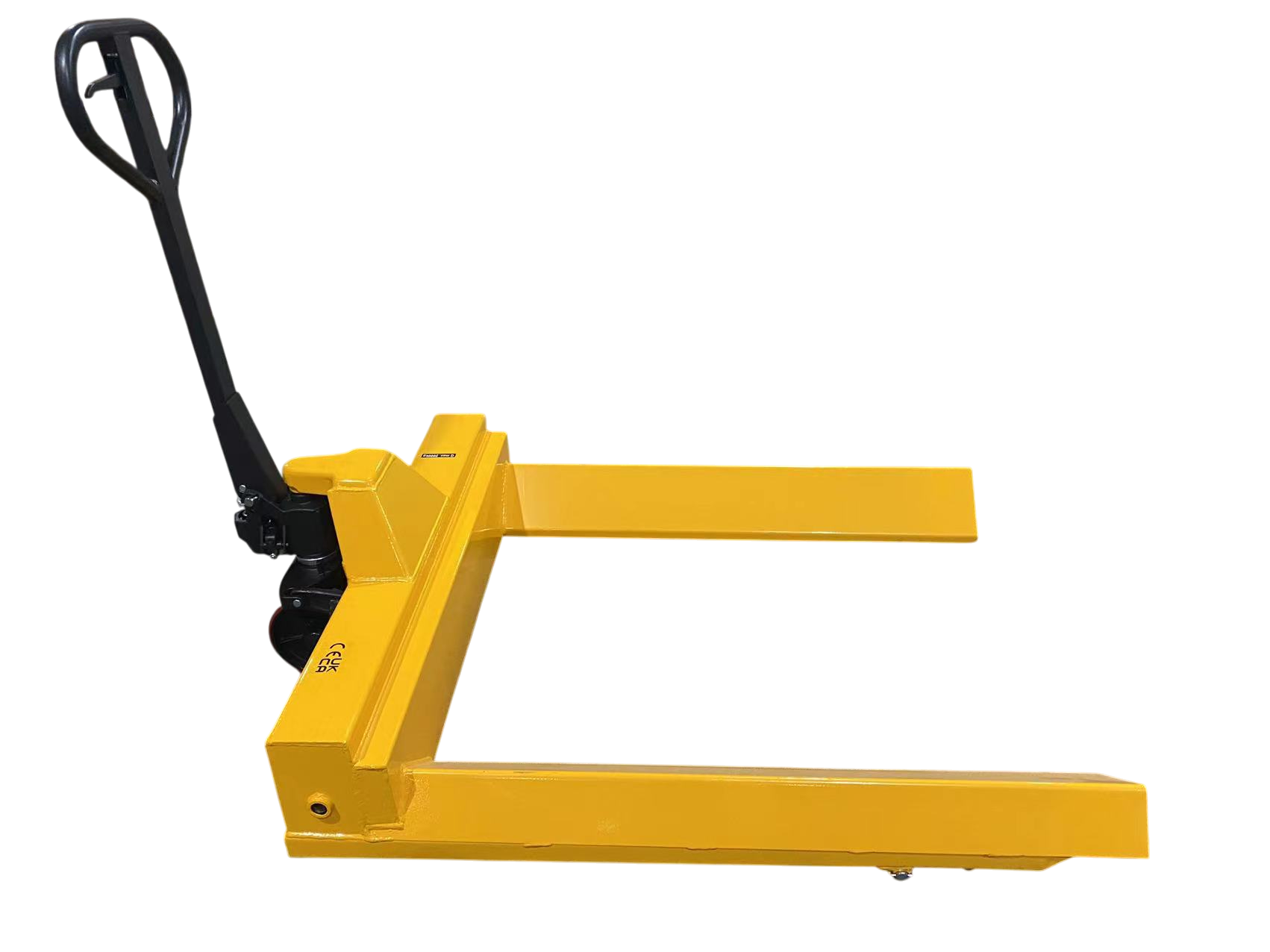

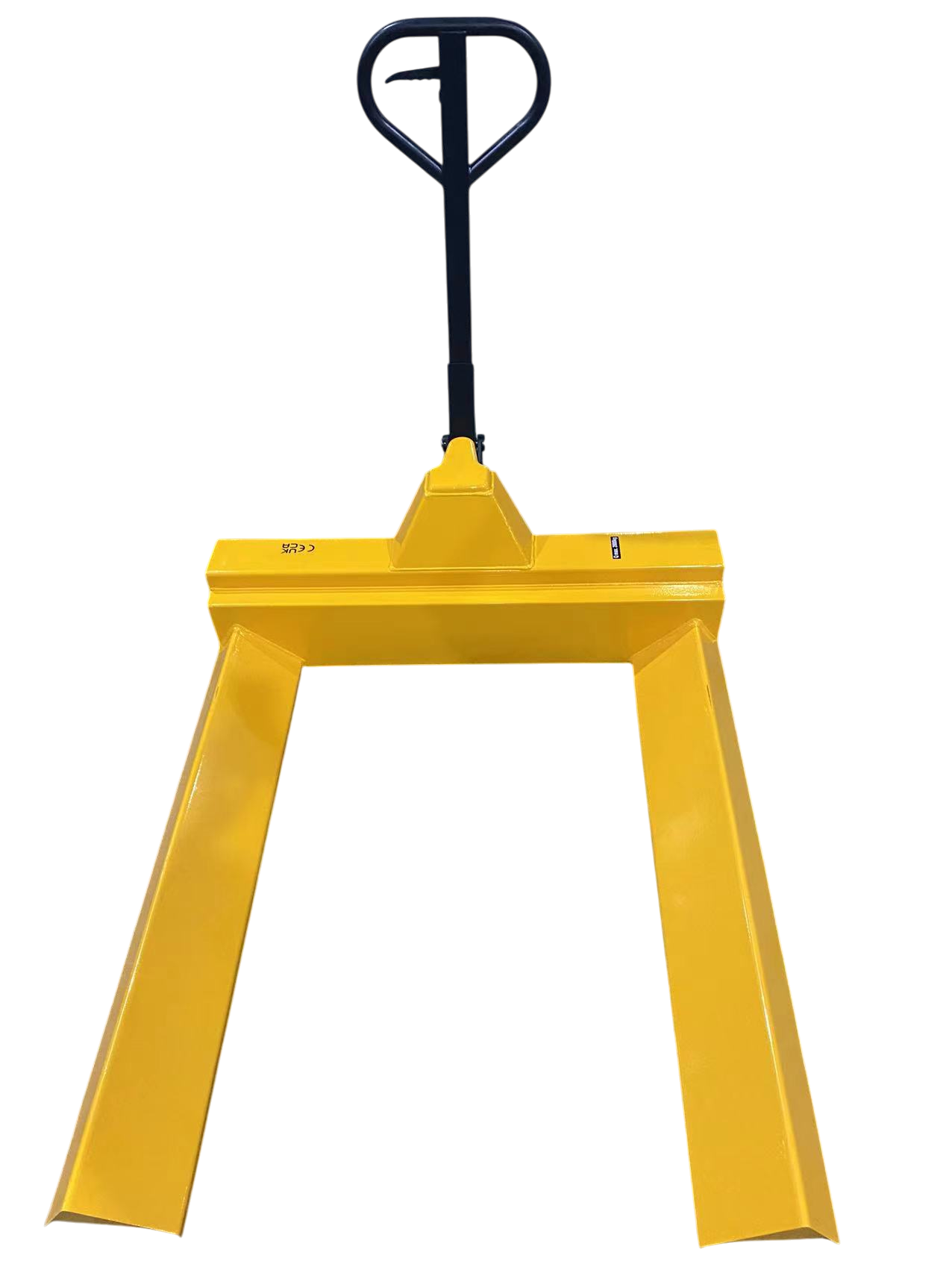

Large Load Capacity Reel Carrying Pallet Truck

AC20R1000 / AC20R1500 2000kg Reel carrying pallet truck

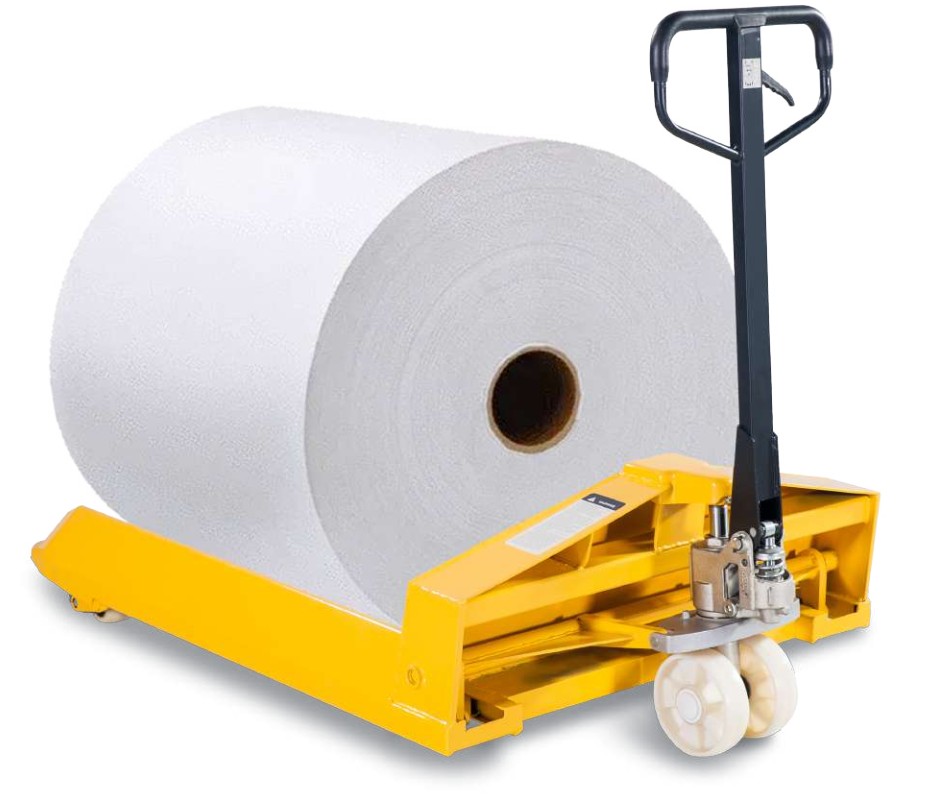

    • A reel carrying pallet truck or roll carrying pallet truck is ideal for transporting such things as textile rolls, paper rolls, drums and other cylindrical shaped loads.
    • This model has a larger than normal load capacity of 2000kg, as well as double tandem polyurethane rollers.
    • It features a top quality hydraulic pump which has a controllable lowering hand control and 3 position lever. Grease fittings are fitted at key points.
    • Tandem rollers spread the load therefore reducing ground contact and friction. This makes it easier to move heavy loads on the truck, resulting in less strain for the operator

AC20R1000 Specification

    • 2000kg capacity
    • Fork size: 1000mm width x 1150mm long
    • Gap between the forks, approx. 540mm
    • Gap between high point of forks 870mm
    • Designed for roll diameters from 800-1200mm

AC20R1500 Specification

    • 2000kg capacity
    • Fork size: 1150mm width x 1150mm long
    • Gap between the forks, approx. 760mm
    • Gap between high point of forks 1040mm
    • Designed for roll diameters from 1200-1600mm
