Product description

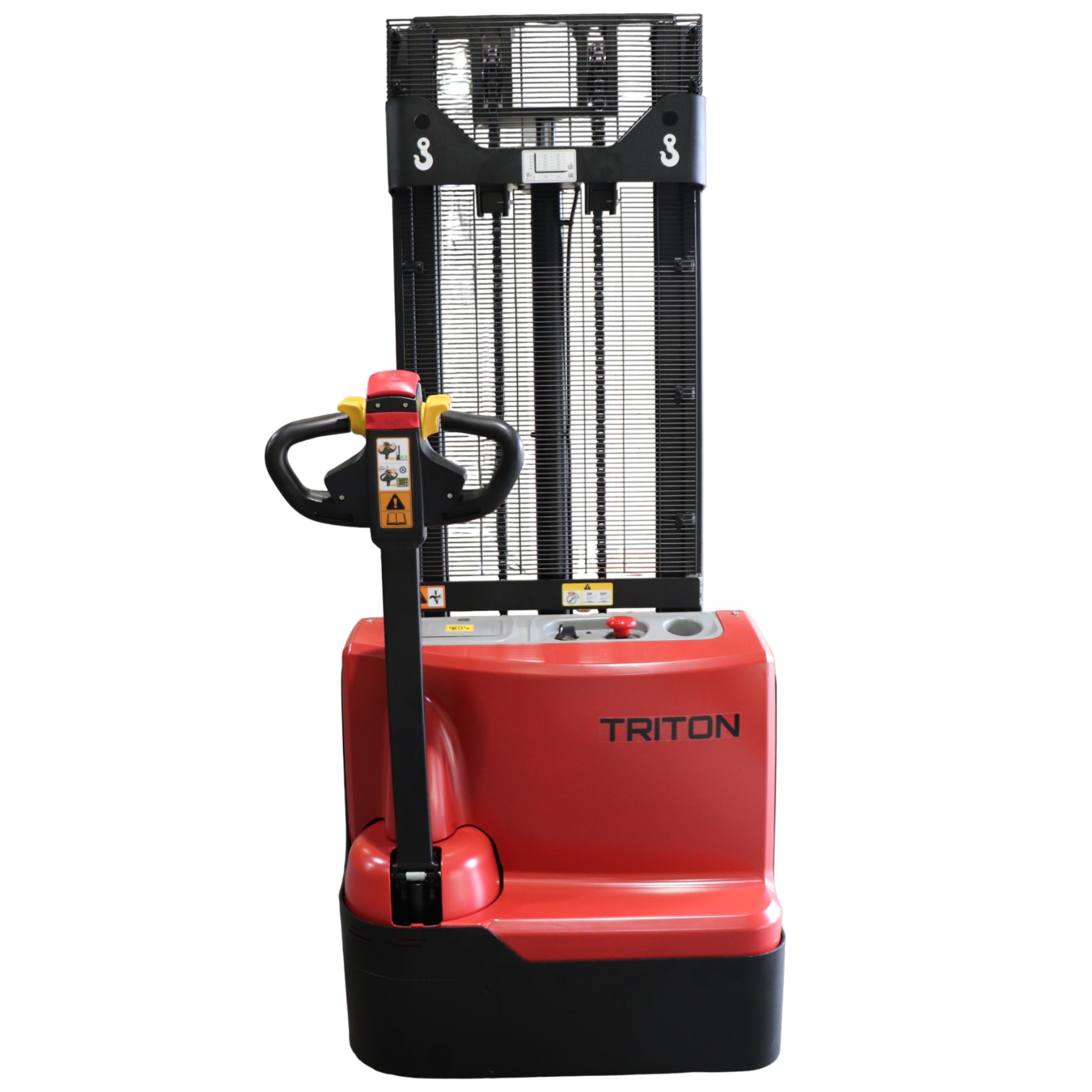

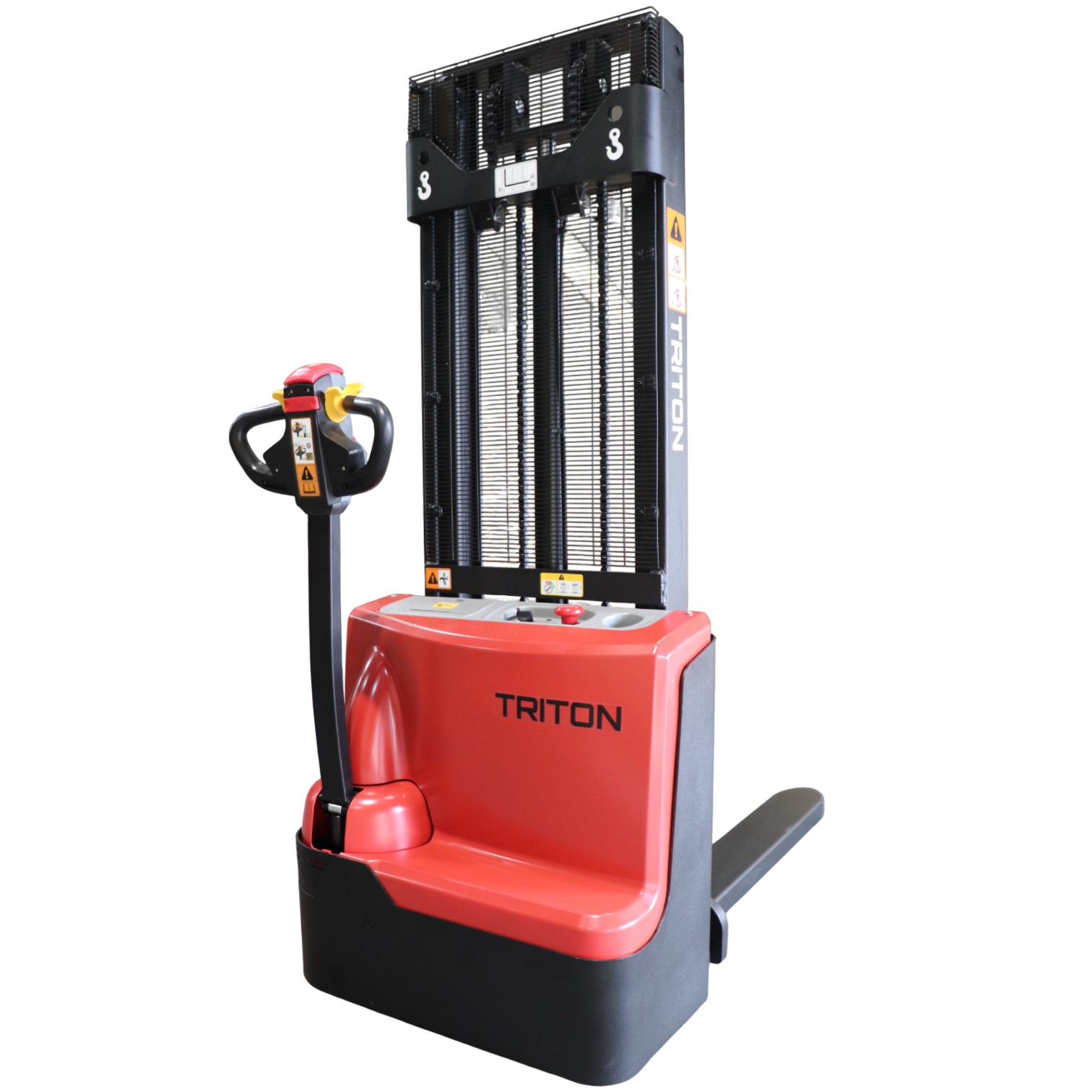

TRITON ES15-B-3000 Electric Stacker

Intelligent. Rugged. Effortless.

The TRITON ES15-B-3000 Electric Stacker combines intelligent technology, robust engineering, and ergonomic design to deliver reliable material handling performance in any warehouse or logistics environment. With a lifting height of 3000 mm and a load capacity of 1500 kg, this stacker is built for efficiency, safety, and operator comfort.

Key Features

Intelligent & Efficient

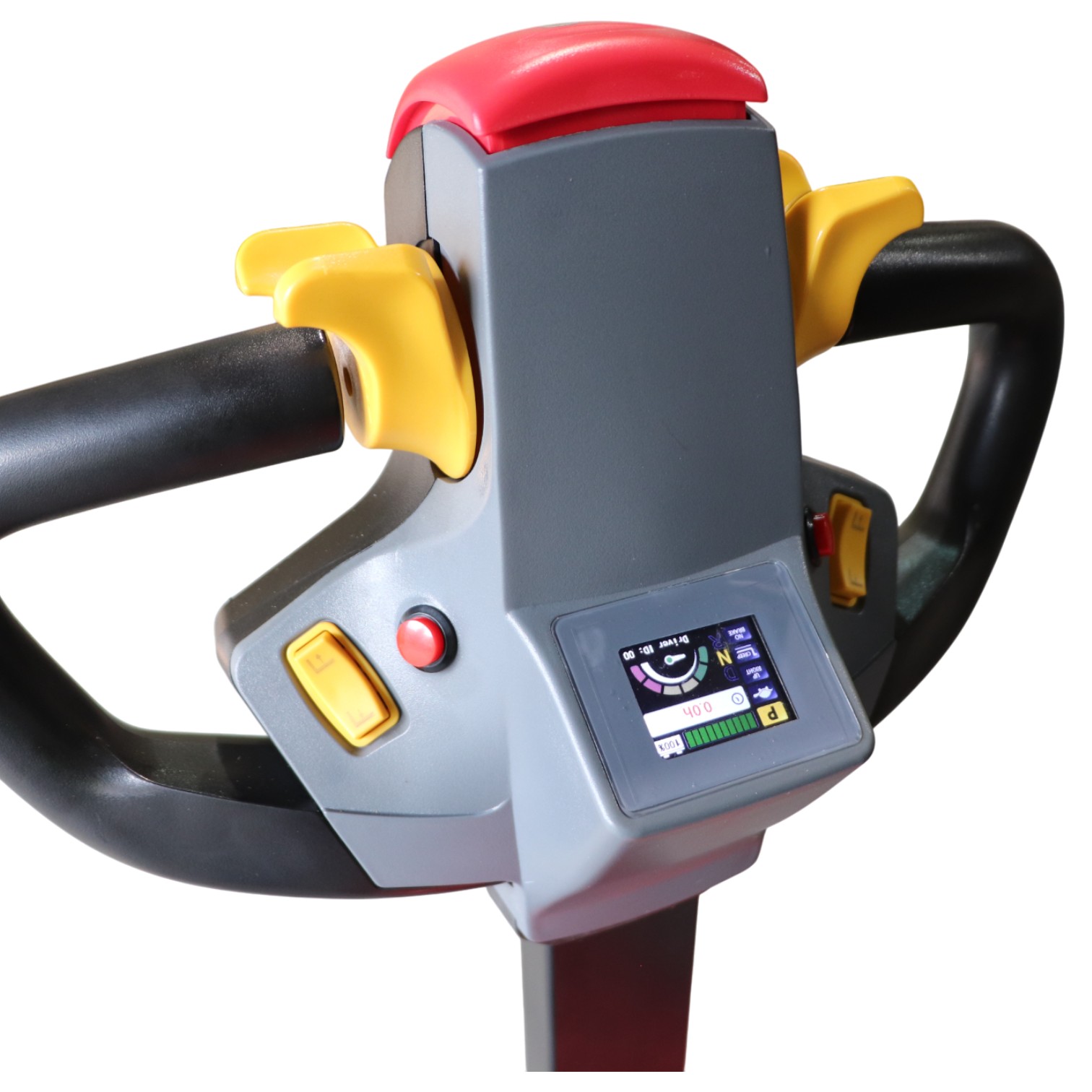

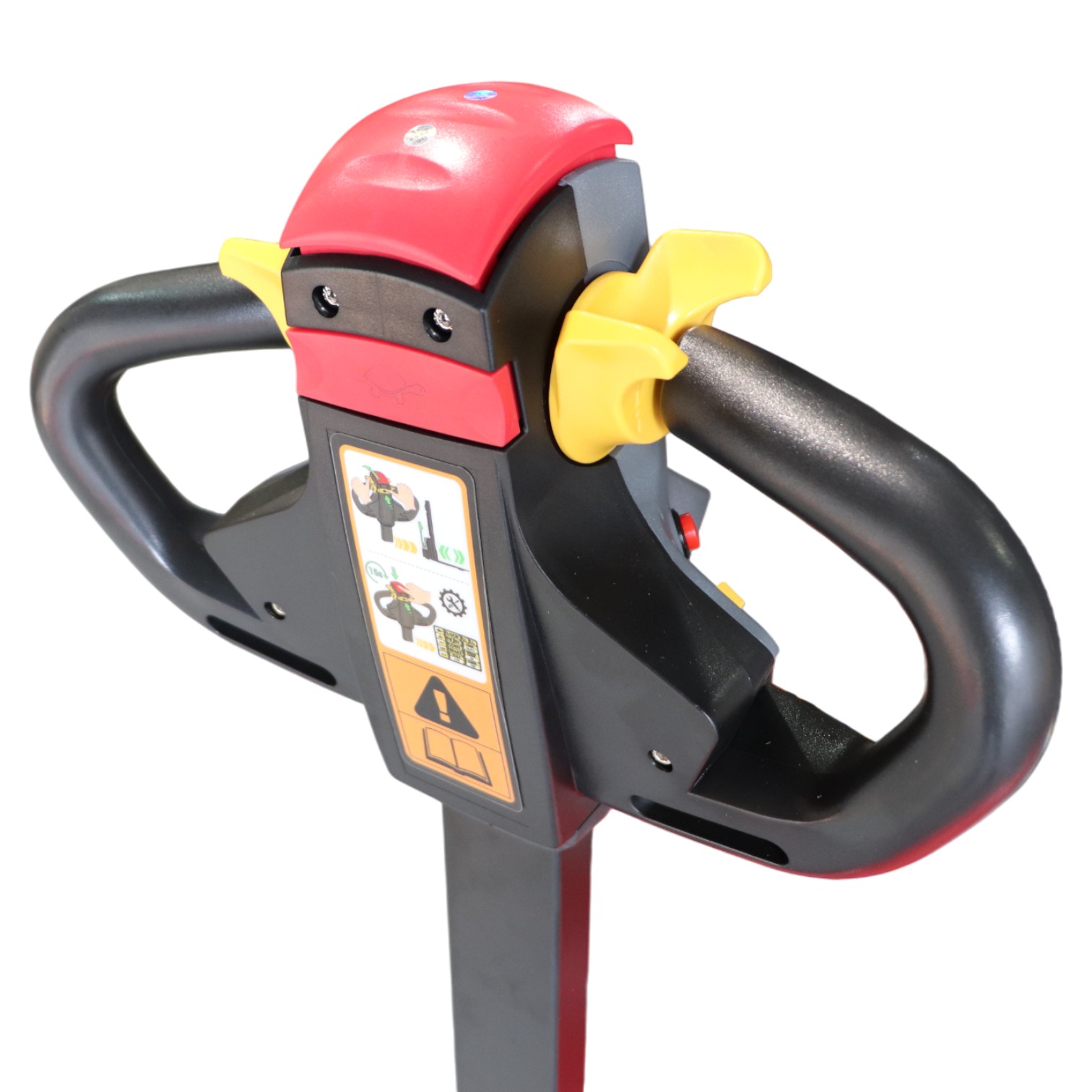

• Multifunctional Tiller Handle: Patented intelligent design with integrated fault display and control functions for easy troubleshooting and quick operation.

• Easy Maintenance: Diagnostic display reduce downtime and service costs. Full technical support including easy to follow guides on maintenance.

• Creep Mode & Upright Drive: Ideal for manoeuvring in tight aisles and narrow storage zones.

Rugged & Durable

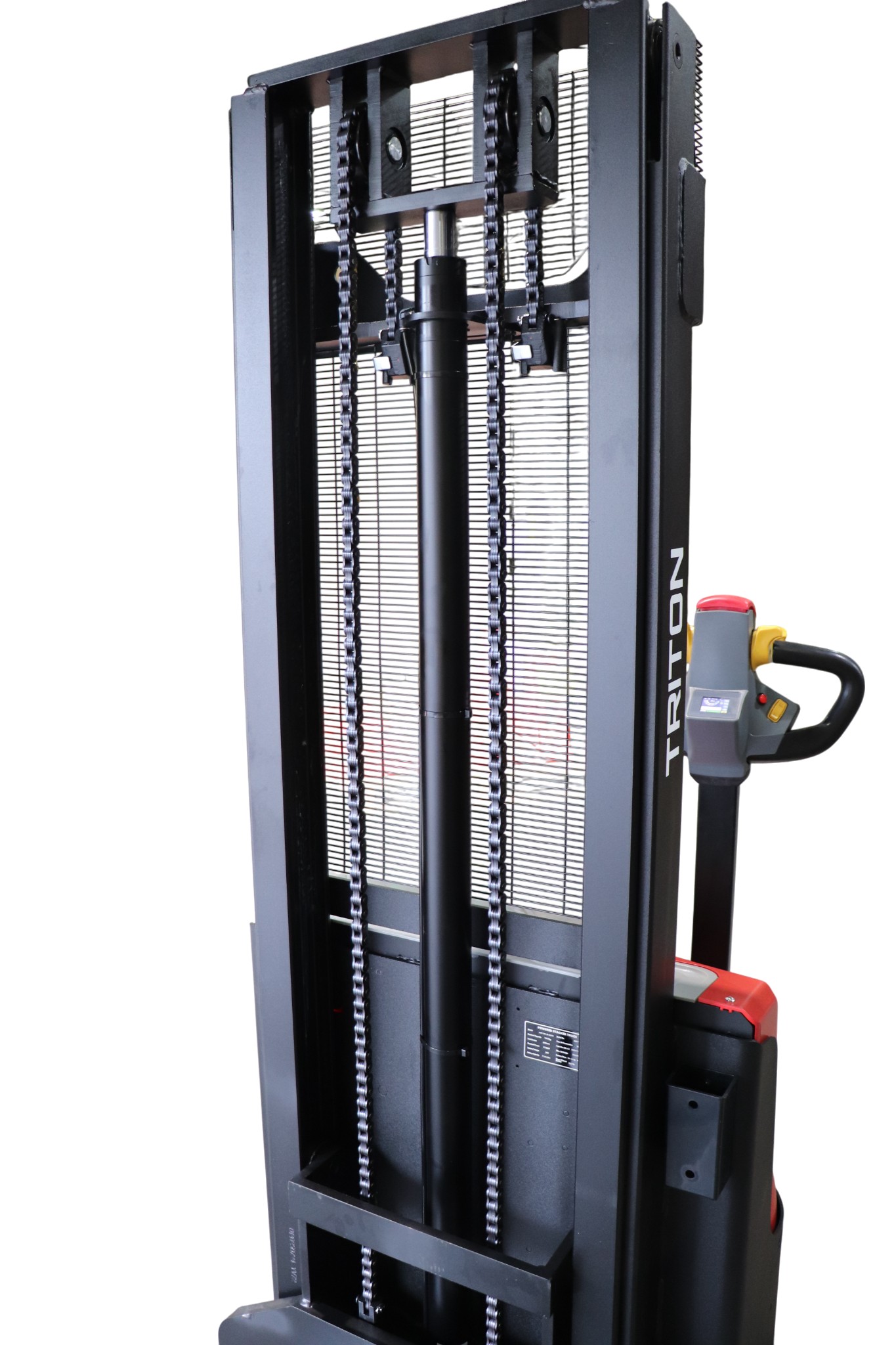

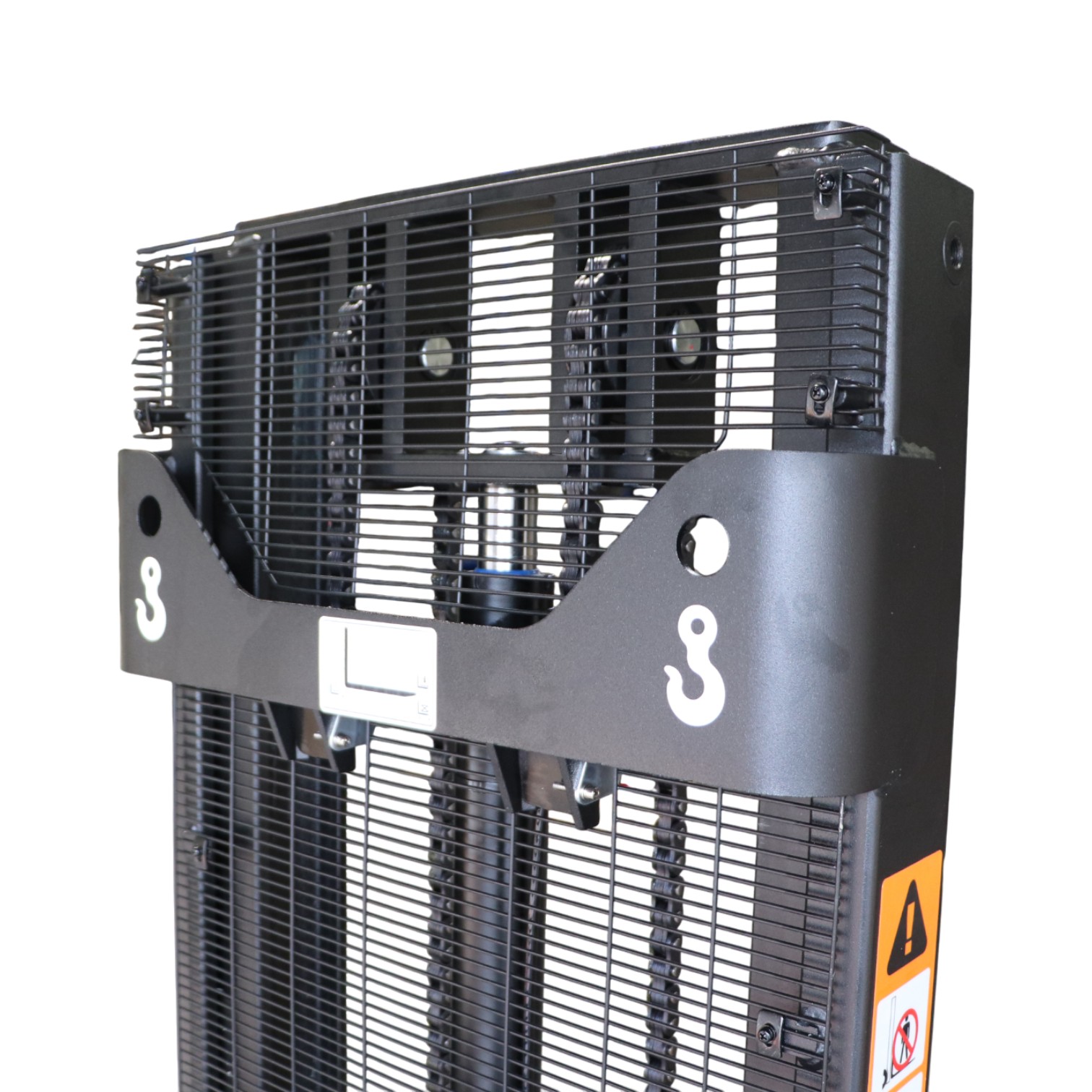

• Reinforced Construction: High-strength frame, C+H channel steel mast, and 30mm chassis base for maximum rigidity and long service life.

• Double-Chain Design: Enhanced load stability and safer lifting operations.

• Cylinder Fail-Proof Valve: Prevents sudden load drops in case of hydraulic failure.

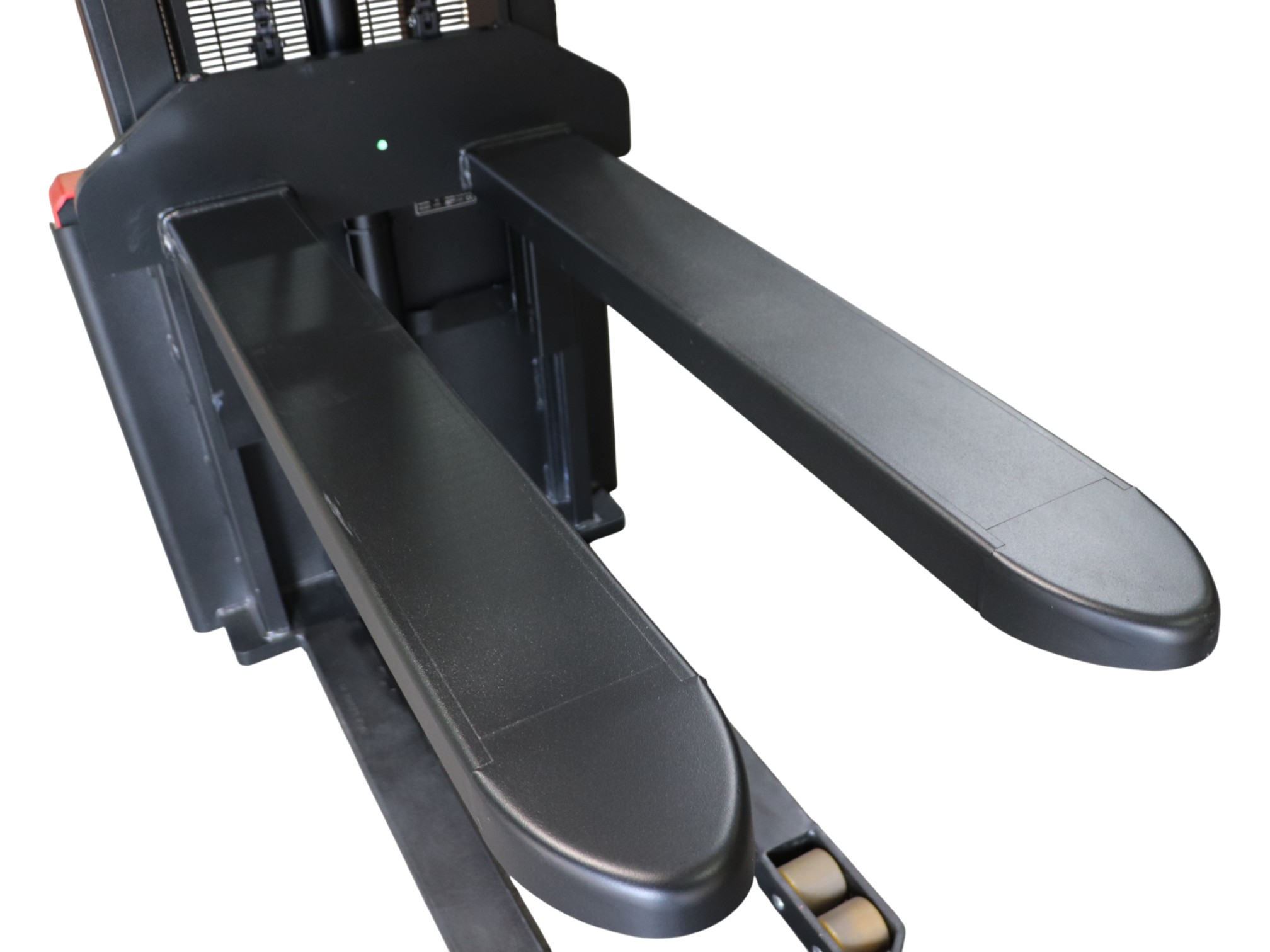

• High-Strength Forks & Solid Support Legs: Designed to withstand heavy daily use with minimal deformation.

• Safety Speed Limiter: Automatically reduces travel speed when forks are raised above 500mm.

Easy & Comfortable

• Ergonomic Steering: Long low-mounted tiller and a 180° steering angle for reduced effort and superior manoeuvrability.

• Built-in Charger: 240v charger with 3 pin UK plug with auto power-off during charging for maximum safety.

• Battery: Standard 24V/71Ah AGM battery

Technical Specifications

• Load Capacity: 1500 kg

• Fork Size: 560x1150mm

• Lift Height: 3000 mm

• Travel Speed: 4.0 / 4.5 km/h (with/without load)

• Lift Speed: 72 / 115 mm/s

• Lowering Speed: 133 / 116 mm/s

• Turning Radius: 1425 mm

• Battery: 24V / 71Ah AGM (optional lithium-ion, see our model series ES15-Li for details)

• Noise Level: <75 dB(A)

• Stacker Weight: 604 kg

Why Choose the TRITON ES15-B-3000

This stacker is the perfect blend of efficiency, price, durability, and safety — engineered for demanding operations while remaining comfortable and easy to control. Whether used for warehouse stacking, pallet movement, or confined space lifting, the TRITON ES15-B-3000 delivers performance you can rely on.

Please Note: This electric pallet stacker is not suitable for closed-bottom pallets.

SHIPPING COSTS – The prices shown are for a palletised delivery, a forklift truck will be required for unloading the stacker.

Alternatively if you haven’t got access to a forklift we can arrange for a direct delivery, unpalletised (extra charges may apply)

For further information, please refer to the full technical PDF on this page, or contact our sales and technical team.

Supplied with an EC Declaration Of Conformity and issued with a LOLER certificate.

For shipping to the Highlands or other Islands – please contact us for an accurate cost
